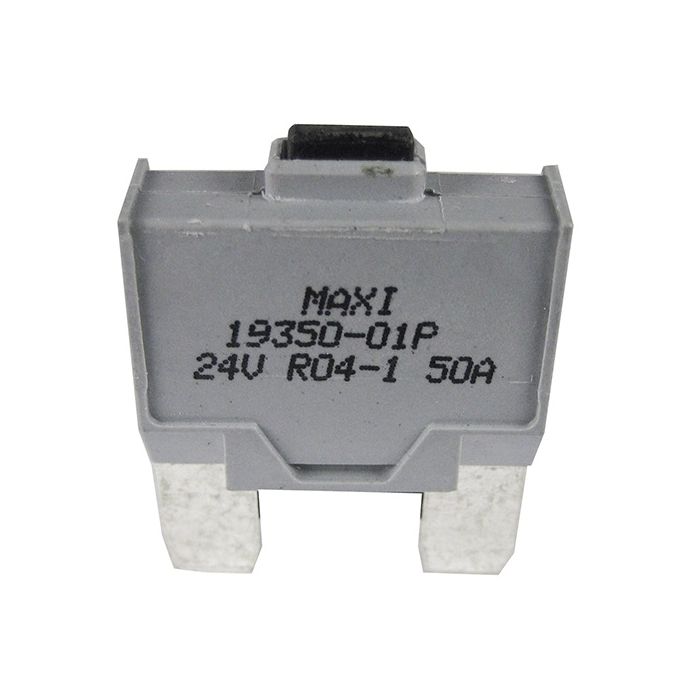

Bussmann 19350-01P-1 Maxi Blade Type Circuit Breaker Manual Reset
Special Price
$13.48
Regular Price
$13.75
In stock
SKU
19350-01P-1
Bussmann 19350-01P-1 Maxi Blade Type Circuit Breaker Manual Reset is available to buy in increments of 1
Bussmann 19350-01P-1 Maxi Blade Type Circuit Breaker Manual Reset
Bussmann 19350-01P-1 Maxi Blade Type Circuit Breaker Manual Reset
The 193 Maxi Blade circuit breaker features the same plug-in terminals as found on a MAXI blade fuse. They can be used for a new application or as a drop-in replacement for a Maxi fuse (depending on clearance).
Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.
Bussmann 193 Maxi Blade Circuit Breakers (Plastic Case) – MAXI BLADE CIRCUIT BREAKER 50A 28VDC TYPE III PLAST.
Features
- Ignition Protected
- Metal cover aids heat dissipation; mandatory for Modified Resets, recommended on Auto Resets
- Manual Reset button available in black (-1) or white (-2)
- Also available with auto blade terminals
- Accessories include covers, mounting brackets, module frames, and module joiners
Specifications
| Part Number | 19350-01P-1 |
|---|---|
| Description | MAXI BLADE CIRCUIT BREAKER 50A 28VDC TYPE III PLAST. |
| Voltage | 14VDC (191, 192, 193 series); 28VDC (193, 194, 195 series) |
| Ampere Rating | 8A to 50A (Automatic TI and Manual TIII); 8A to 40A (Modified TII) |
| I.R. | 150A at 14VDC (8A to 10A); 225A at 14VDC (15A); 300A at 14VDC (20A); 450A at 14VDC (25A to 30A); 600A at 14VDC (35A to 40A); 750A at 14VDC (50A) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 125°C |
| Case | Metal (Automatic TI, Modified TII); Plastic (Manual TIII) |
| Terminal Type | SAE Terminal Type 01; also available with auto blade terminals |
| Approvals | J553, J1171 |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 9347729003532 |
