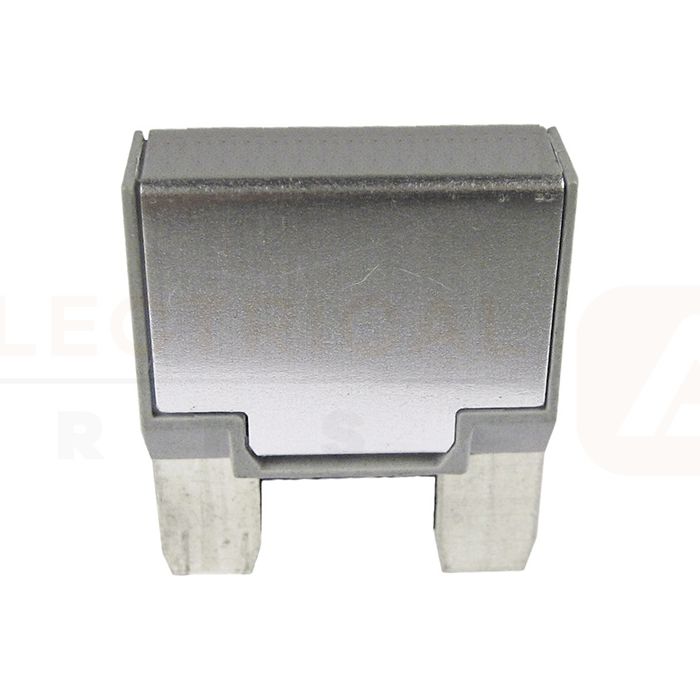

Bussmann 19425-01M 25A Circuit Breaker Maxi Blade Type
Special Price
$16.92
Regular Price
$17.27
In stock
SKU
19425-01M
Bussmann 19425-01M 25A Circuit Breaker Maxi Blade Type is available to buy in increments of 1
Bussmann 19425-01M 25A Circuit Breaker Maxi Blade Type
Bussmann 19425-01M 25A Circuit Breaker Maxi Blade Type
I. R.: 150A at 14VDC (8A to 10A)
225A at 14VDC (15A)
300A at 14VDC (20A)
450A at 14VDC (25A to 30A)
600A at 14VDC (35A to 40A)
750A at 14VDC ( 0A) 5
Voltage: 14VDC ( 191, 192, 193 series)
28VDC (193, 194, 195 series)
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 125°C
Pack Size: Stock lines 1pc,
Termination Notes: Also available with auto blade
terminals. Contact sales for further information.
Notes: Metal cover aids heat dissipation. Mandatory
for Modified Resets and recommended, but not
mandatory on Auto Resets.
Manual Reset button available in two colour choices.
Part Number suffix -1 (Black) and -2 (White).
Bussmann 194 Maxi Blade Circuit Breakers (Metal Case) – MAXI BLADE CIRCUIT BREAKER 25A 28VDC TYPE I METAL
Features
- Ignition protected
- Metal cover aids heat dissipation
- Manual reset button available in black (-1) or white (-2)
- UCB snap-off universal blades fit tight fuse block spacing or recessed terminals
- UCB colour-coded covers match amperage ratings
Specifications
| Part Number | 19425-01M |
|---|---|
| Description | MAXI BLADE CIRCUIT BREAKER 25A 28VDC TYPE I METAL |
| Voltage | 12VDC, 12/24VDC, 24VDC |
| Ampere Rating | 8A to 50A |
| Interrupt Rating (I.R.) | 150A at 14VDC (8A to 10A), 225A at 14VDC (15A), 300A at 14VDC (20A), 450A at 14VDC (25A to 30A), 600A at 14VDC (35A to 40A), 750A at 14VDC (50A) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 125°C |
| Termination | Blade (auto blade terminals also available); UCB: auto fuse footprint, brass |
| Reset Mechanism | Manual (with reset button) or Automatic (no button). UCB: Type I, Automatic Reset |
| Cover | Metal |
| Blade Width | 12.7mm |
| Approvals | SAE J553, J1171 (UCB: J553) |
| Manufacturer | Bussmann |
|---|
