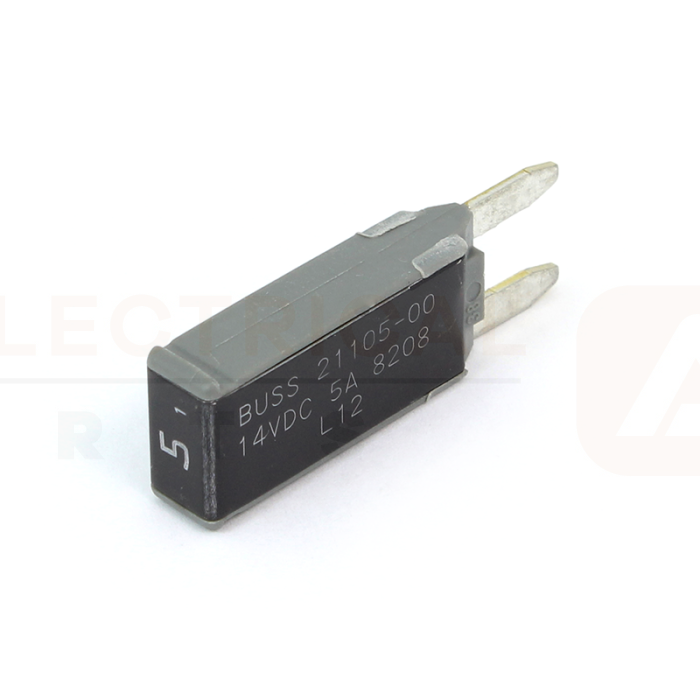

Bussmann 21105-00 5A Mini Blade Circuit Breaker - Thermal Type 1
Special Price
$9.70
Regular Price
$9.90
In stock
SKU
21105-00
Bussmann 21105-00 5A Mini Blade Circuit Breaker - Thermal Type 1 is available to buy in increments of 1
5A Mini Blade Circuit Breaker - Thermal Type 1
5A Mini Blade Circuit Breaker
Automatic Type 1
I. R.: 150A at 14VDC (5A to 10A)
225A at 14VDC (15A)
300A at 14VDC (20A)
450A at 14VDC (25A to 30A)
Voltage: 14VDC
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 125°C
Pack Size: Stocked lines 1, 10, 100pcs
Holders: Power Dist. Blocks (ISO 280)
Approvals: SAE j553
Bussmann 211 Mini Blade Circuit Breakers – MINI BLADE CIRCUIT BREAKER 5A 14VDC TYPE I
Features
- Cover is colour coded to amperage ratings
- Matches Mini fuse footprint
- Manual reset button on top
- Available in Automatic TI, Modified TII and Manual TIII types
Specifications
| Part Number | 21105-00 |
|---|---|
| Description | MINI BLADE CIRCUIT BREAKER 5A 14VDC TYPE I |
| Voltage | 14VDC (Automatic TI and Modified TII); 28VDC (Manual TIII) |
| Ampere Rating | 5A, 7.5A, 10A, 15A, 20A, 25A, 30A |
| I.R. (14VDC) | 150A at 14VDC (5A to 10A); 225A at 14VDC (15A); 300A at 14VDC (20A); 450A at 14VDC (25A to 30A) |
| I.R. (28VDC) | 100A at 28VDC (5A to 10A); 150A at 28VDC (15A); 200A at 28VDC (20A); 300A at 28VDC (25A to 30A) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 125°C |
| Approvals | SAE J553 |
| Body Colour | Tan, Brown, Red, Blue, Yellow, White, Green |
| Blade Width | 2.8mm wide blades |
| Compliance | RoHS |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 9347729001859 |
