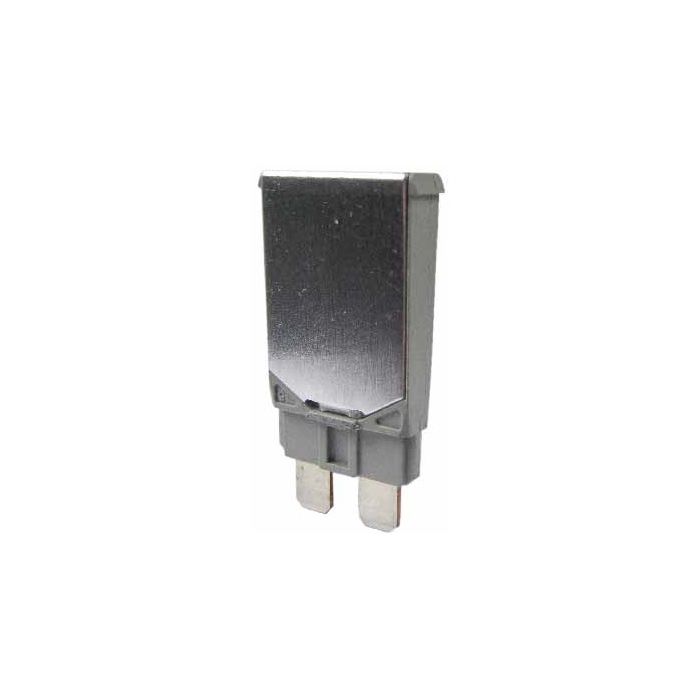

Bussmann 22205-400 5A Circuit Breaker Auto Blade Type
Special Price
$8.62
Regular Price
$8.80
In stock
SKU
22205-400
Bussmann 22205-400 5A Circuit Breaker Auto Blade Type is available to buy in increments of 1
5A Circuit Breaker Auto Blade Type
5A Circuit Breaker Auto Blade Type
I. R.: 150A at 14VDC (5A to 10A)
225A at 14VDC (15A)
300A at 14VDC (20A)
450A at 14VDC (25A to 30A)
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 125°C
Holders: Blocks
Pack Size: Stocked lines 1, Indent items 250pcs
Bussmann 222 Blade Circuit Breakers – AUTO BLADE CIRCUIT BREAKER 5A 14VDC TYPE II
Features
- Ignition protected
- Low profile housing
- Available in tan, brown, red, blue, yellow, white and green body colours
Specifications
| Part Number | 22205-400 |
|---|---|
| Description | AUTO BLADE CIRCUIT BREAKER 5A 14VDC TYPE II |
| Voltage | 12-24VDC |
| I.R. | 2000A at 28VDC |
| Operating Temp | -30°C to 75°C |
| Storage Temp | -30°C to 105°C |
| Material | UL 94V-0 thermoplastic housing |
| Compliance | J553, J1171 |
| Ampere Range | 5A to 30A |
| Manufacturer | Bussmann |
|---|
