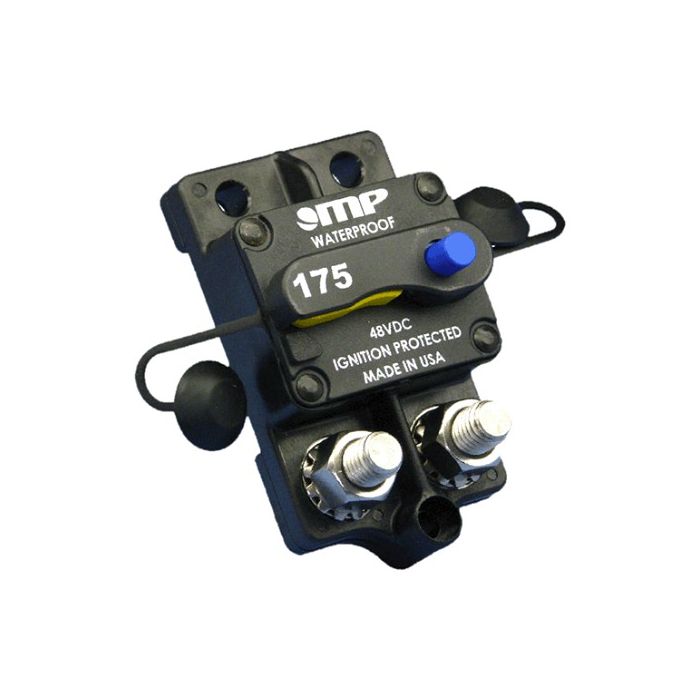

Mechanical Products 175-S1-175 Manual Reset 175A 30VDC Circuit Breaker
Special Price
$64.68
Regular Price
$66.00
In stock
SKU
175-S1-175
Mechanical Products 175-S1-175 Manual Reset 175A 30VDC Circuit Breaker is available to buy in increments of 1
Mechanical Products 175-S1-175 Manual Reset 175A 30VDC Circuit Breaker
Mechanical Products 175-S1-175 Manual Reset 175A 30VDC Circuit Breaker
I.R.Ratings:
Type TI (25A-150A): 3kA at 30VDC, (175A-200A): 1.5kA at 30VDC.
Type TI (225A-300A): 2.5kA at 14VDC.
Type TIII (25A-150A): 2.5kA at 14VDC, 1.5kA at 48VDC .
Type TIII (175A-200A): 2.5kA at 14VDC, 1.5kA at 30VDC.
Type TIII (225A-250A): 1.5kA at 14VDC.
Voltage Ratings:
Type TI: (25A-200A): 30VDC, (225A-300A): 14VDC.
Type TIII: (25A-150A): 48VDC, (175A-200A): 30VDC.
Type TIII: (225A-250A): 14VDC.
Pack Size: Stock lines 1pc, indent items 9pcs.
Housing: UL94 V-0 rated black thermoplastic.
Termination: Stainless steel studs. (1/4" or 3/8" options).
Operating Temp: -40°C to 85 °C.
Ingress Protection Rating: IP67
Indicator: Manual reset breakers feature a bright yellow colour reset lever that provides a visual indication of a tripped condition.
Features: Ignition protected and weatherproof.
Stud Insulator Caps: Included.
Terminal Hardware: Stainless steel sems nuts included.
Mechanical Products Series 17 Circuit Breakers (175-S1) – CIRCUIT BREAKER 175A 30VDC SURFACE MOUNT 1/4" SIDE-BY-SIDE TERMINAL MAN/S
Features
- Ignition protected, weatherproof design with superior moisture seal
- Robust thermoplastic case
- Corrosion resistant studs and hardware
- Accommodates TripID™ visual open-circuit indicator
Specifications
| Part Number | 175-S1-175 |
|---|---|
| Description | CIRCUIT BREAKER 175A 30VDC SURFACE MOUNT 1/4" SIDE-BY-SIDE TERMINAL MAN/S |
| Ampere | 20A to 250A (20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, 110, 120, 135, 150, 175, 200, 225, 250A) |
| Voltage | 14 VDC, 30 VDC, 48 VDC (depending on type and rating) |
| Reset Function | Manual reset; automatic reset optional |
| Housing | UL94 V-0 rated black thermoplastic |
| Termination | Side by side, 1/4" or 3/8" stud options |
| Terminal Hardware | Stainless steel, SEMS nuts included |
| Stud Insulator Caps | Included |
| Operating Temp | -40°C to 85°C |
| Ingress Protection Rating | IP67 |
| Indicator | Bright yellow reset mechanism shows tripped condition on manual breakers |
| Approvals | SAE J1625, SAE J1171, ABYC E-11, UL 1077, MIL-STD |
| Mounting | Snap on (LED indicator accessory); surface mount accessory available |
| Country of Origin | USA |
| Manufacturer | Mechanical Products |
|---|
