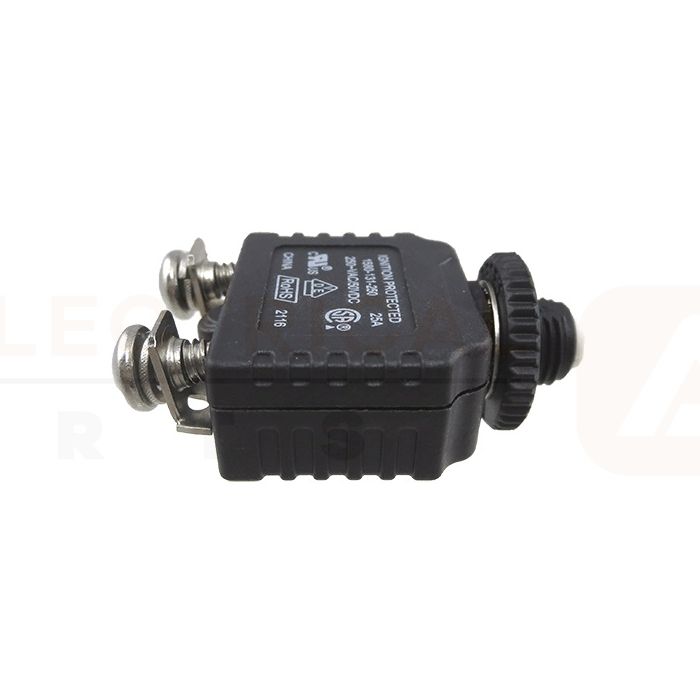

Mechanical Products 1580-131-250 Manual Reset Circuit Breaker- Screw Terminal 25A 3/8" -27
Special Price
$10.24
Regular Price
$10.45
In stock
SKU
1580-131-250
Mechanical Products 1580-131-250 Manual Reset Circuit Breaker- Screw Terminal 25A 3/8" -27 is available to buy in increments of 1
Mechanical Products Manual Reset Circuit Breaker- Screw Terminal 25A 3/8" -27
Mechanical Products Manual Reset Circuit Breaker- Screw Terminal 25A 3/8" -27
Voltage: 250VAC / 50VDC.
I.R.: 1kA at 250VAC / 50VDC.
Reset Mechanism: Type III, Manual Reset.
Button: White button with black ampere rating stamp.
Mounting: Panel mount - includes Pal nut & Knurl nut.
Screw Terminals: 3A-20A (#6-32), 25A-40A (#8- 32).
Hardware: Screw terminals include screws & lock washers.
Features: Ignition Protected UL 1500.
Options: Weatherproof boots, extended ampere ratings (500mA-2.5A & 45A-70A), snap mounting or various terminal and hardware options.
Pack Size: Stock lines 1pc,
Mechanical Products Series 15 Circuit Breakers (1580-131) – CIRCUIT BREAKER 25A 250VAC/50VDC PANEL MOUNT MANUAL RESET 3/8"-27 THREAD, SCREW
Features
- Miniature size, suitable for panel mount or dash mount
- Wide range of common amperages (3A-40A) for both AC and DC voltages
- Custom versions available with alternative termination, mounting, button and reset options
- Build-your-own 4, 6 or 8 way switch and circuit breaker panels
Specifications
| Part Number | 1580-131-250 |
|---|---|
| Description | CIRCUIT BREAKER 25A 250VAC/50VDC PANEL MOUNT MANUAL RESET 3/8"-27 THREAD, SCREW |
| Voltage | 250VAC / 50VDC |
| Interrupt Rating (I.R.) | 1kA at 250VAC / 50VDC, 3kA at 32VDC, OL1 rated |
| Ampere Range | 3A-40A |
| Reset Mechanism | Manual Reset |
| Button | White button with black ampere rating stamp |
| Mounting | Panel mount, includes Pal nut & Knurl nut; dash mount; snap mount upon request |
| Terminals (Quick Connect) | 1/4" (0.250 x 0.032") straight terminals |
| Terminals (Screw) | 3A-20A (#6-32), 25A-40A (#8-32); includes screws & lock washers |
| Bushing | 3/8"-27 or 7/16"-28 |
| Features | Ignition Protected, UL |
| IP Rating | IP67 |
| Options | Alternative ampere ratings (500mA-2.5A & 45A-70A) |
| Hardware Materials | Aluminum (small knurl nut, pal nut, name plate); Black Nylon (large knurl nut) |
| Manufacturer | Mechanical Products |
|---|
