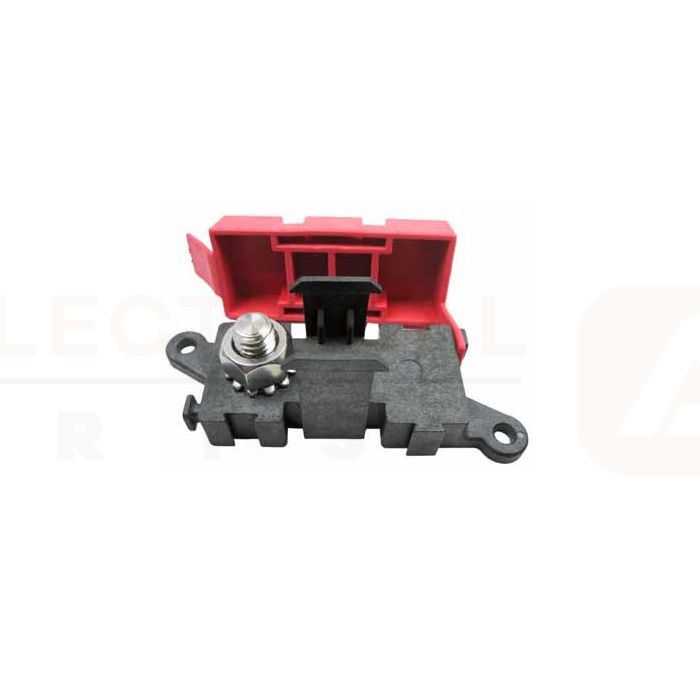

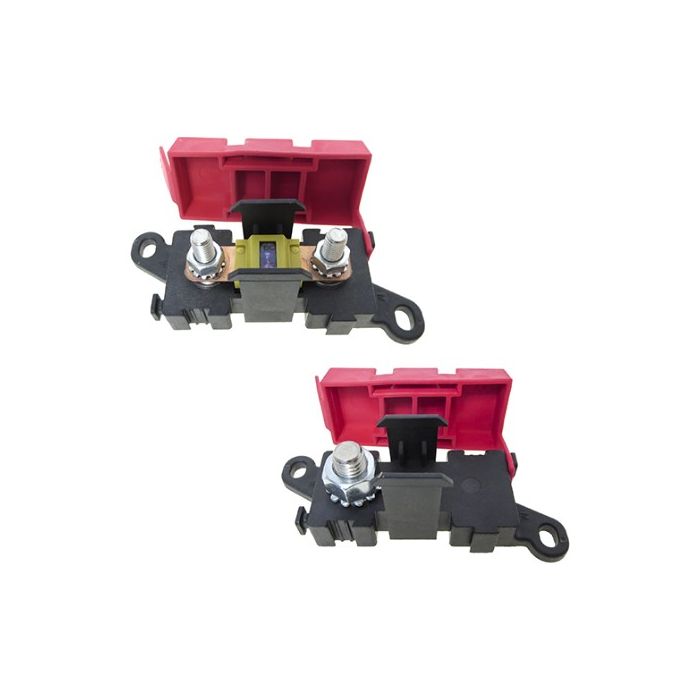

Bussmann LMI1-E-1-1 Midi Fuse Block Input Module 400A Max

Bussmann Midi Fuse Block Input Module 400A Max

Ratings: Maximum total combined rating is 400A continuous. Based on numerous variations possible between numbers of poles used, fuses selected, input wiring, and output wiring, all applications should be tested by installer to verify the product meets their requirements.
Temperature: -40°C to 85°C.
Housing: HTN black UL-rated 94V0 thermoplastic material.
Cover: Red Santoprene cover for protection from accidental shorts.
Studs: Stainless Steel.
Accessories: Includes cover & keps nut(s).
Options: Pre-assembled with specified Midifuses for OE requirements.
Notes: The modules feature a stackable side design to allow multiple modules to be joined together. Fuses & bus bars are not included with blocks.

Bussmann now offers a heavy duty fuse panel called the LMI “Little Block”. The LMI is used for main branch primary fusing and can be configured to fit up to 6 industry standard Midifuses all bussed to a single input stud. The LMI provides efficient power distribution suitable for many “under the hood” applications such as; Marine, Construction, Agriculture, Heaving Trucking, Bus and Specialty Vehicles.
