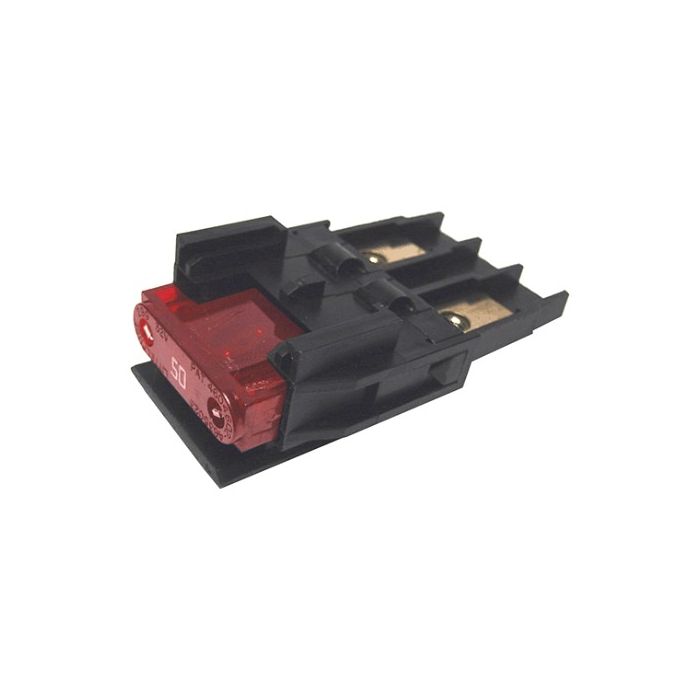

Littelfuse 152001 Fuse Holder Kit for Maxi Blade fuses (5 - 10mm²)
Special Price
$34.35
Regular Price
$36.83
In stock
SKU
152001KIT2
Littelfuse 152001 Fuse Holder Kit for Maxi Blade fuses (5 - 10mm²) is available to buy in increments of 1
Littelfuse 152001 Fuse Holder Kit for Maxi Blade fuses (5 - 10mm²)
Littelfuse 152001 Fuse Holder Kit for MAXI/MAX fuses (5 - 10mm²)

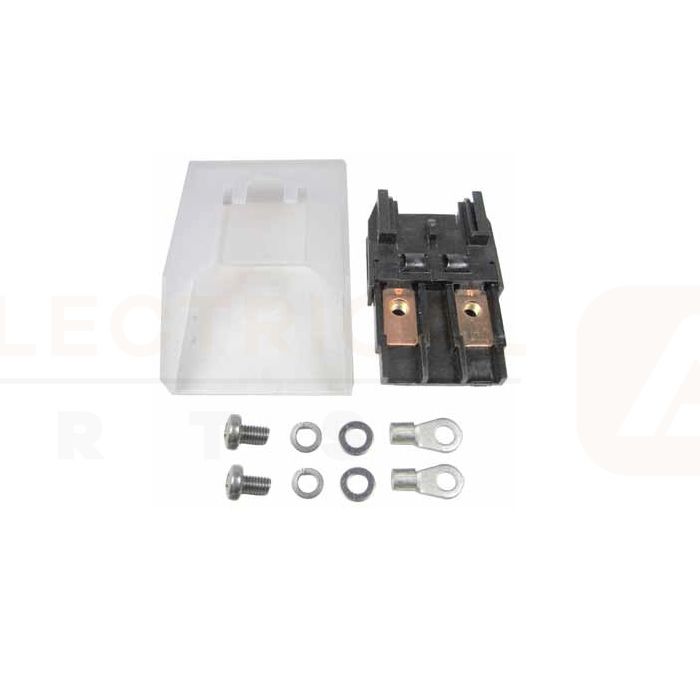

Fuse holder kit includes fuse holder body, cover, screws & lugs to suit 5 - 10mm² cable.
Rating: 60A
Voltage: 32VDC
Terminals: Copper alloy
Body: Black thermoplastic (UL 94HB)
Cover: Translucent thermoplastic
Pack Size: 1
Features: Only 2 fuse blocks may be ganged together with a maximum fuse rating of 50A per block.
Notes: This product will accept original Littelfuse only Maxi lade fuses (299 / 999 series). b Fuse is not included. *It is recommended that cross linked polyethelene (GLX) insulated wire be used
Littelfuse 152001 Fuse Holder for MAXI/MAX fuses – INLINE FUSE HOLDER KIT INCLUDES COVER, SCREWS + TERMINAL 5-10MM2 FOR MAXI BLADE FUSE
Features
- Protective cover permits use in harsh under hood environments
- Clear cover allows LED Maxi fuses to be clearly seen
- Mounting hole permits easy bulkhead installation
- Permits 2 or more holders to be mounted together
- Only 2 fuse blocks may be ganged together, max 50A per block
Specifications
| Part Number | 152001KIT2 |
|---|---|
| Description | INLINE FUSE HOLDER KIT INCLUDES COVER, SCREWS + TERMINAL 5-10MM2 FOR MAXI BLADE FUSE |
| Rating | 60A 32VDC |
| Terminals | Copper alloy |
| Cover | Translucent thermoplastic |
| Body | Thermoplastic (UL 94 HB) |
| Ignition Protection | UL 94 V-2 |
| Wire | 2 x 127mm leads, 13mm² (6 AWG), black |
| Ring Tongue Terminals | 2.5 - 6mm² (12-10 AWG); 5 - 10mm² (10-8 AWG) |
| Mounting Hole | M5 / 6.7mm diameter |
| Screw | M5 x 8 |
| IP Rating | IP67 |
| Manufacturer | Littelfuse |
|---|
