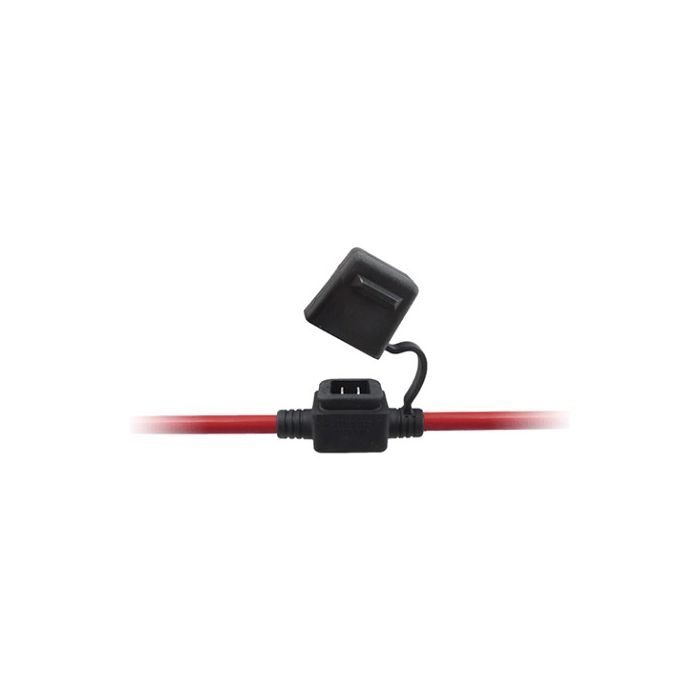

Littelfuse FHJC1002 Littelfuse FHJC1002 Fuseholder Inline Fusible Link 60A Max
Special Price
$23.72
Regular Price
$24.20
In stock
SKU
FHJC1002
Littelfuse FHJC1002 Littelfuse FHJC1002 Fuseholder Inline Fusible Link 60A Max is available to buy in increments of 1
Littelfuse FHJC1002 Fuseholder Inline Fusible Link 60A Max
Littelfuse FHJC1002 Fuseholder Inline Fusible Link 60A Max
Rating: 60A
Voltage: 58VDC
Wire Thickness: #8 AWG
Cable Insulation: GXL, 125°C
Operating Temperature Range: -40°C to +125°C
Max Fuse Insertion Force: 49 Nm
Pack Size: 1, 10, 50, 100
Notes: Fuse holders can also be ordered without fuse cover.
Low profile holders also available to suit LJC series fuses, please contact sales for further information.
Littelfuse FHJC1002 Fuse Holder for JCase fuses – FUSEHOLDER INLINE JCASE 60A MAX 8AWG
Features
- Suits Low Profile JCASE or standard JTF fuses
- Includes a protective cover for splash resistance
- Designed for bolt-down Midi fuses, installs in-line with no mounting required
- Curved cover design helps prevent tube splitting when used with heat shrink tubing
- Fuse links offer a design advantage over blade fuses, with grip and connection that won't weaken
Specifications
| Part Number | FHJC1002 |
|---|---|
| Description | FUSEHOLDER INLINE JCASE 60A MAX 8AWG |
| Rating | 60A (FHJC1002); Continuous Max 150A, Rating 200A (04980921GXM5) |
| Voltage | 58VDC |
| Wire Thickness | #8AWG (FHJC1002); Max. Wire Size: 20mm² (04980921GXM5) |
| Cable Insulation | GXL, 125°C |
| Operating Temperature Range | -40°C to +125°C |
| Studs | Zinc plated steel M5 x 0.8 (04980921GXM5) |
| Stud Torque Rating | 5Nm (04980921GXM5) |
| Hardware | Nylock steel nuts, zinc plated (included) (04980921GXM5) |
| IP Rating | IP67 (04980921GXM5) |
| Approvals | RoHS |
| Mounting | Installs directly in-line with cables, no mounting required (04980921GXM5) |
| Note | Midi fuse not included (04980921GXM5) |
| Manufacturer | Littelfuse |
|---|
