Littelfuse FHM002 Littelfuse FHM002 Fuseholder 30A Max In-line; Mini Splash Proof 32V
Special Price
$6.65
Regular Price
$6.79
In stock
SKU
FHM002
Littelfuse FHM002 Littelfuse FHM002 Fuseholder 30A Max In-line; Mini Splash Proof 32V is available to buy in increments of 1

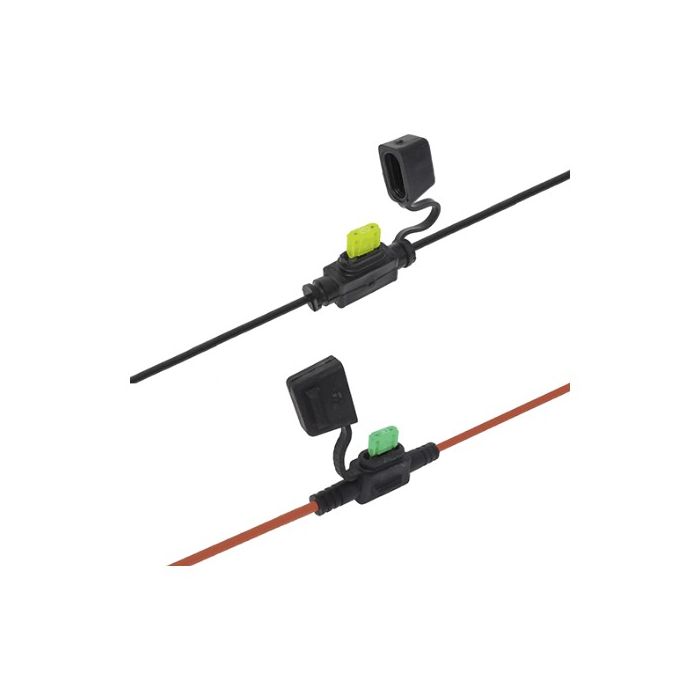

Littelfuse FHM002 Fuseholder 30A Max In-line; Mini Splash Proof 32V
Littelfuse FHM002 Fuseholder 30A Max In-line; Mini Splash Proof 32V
30A with splash proof fuse cover
Voltage: 32V
Wire: 1.3mm² #16AWG stranded black wire (FHM001-ID)
2.1mm² #14AWG stranded black wire (FHM001)
2.1mm² #14AWG stranded red wire (FHMB001B)
3.1mm² #12AWG stranded red wire (FHMB002B)
3.3mm² #12AWG stranded orange wire (FHM002)
Wire Length: 94mm each side of the body included (FHM001 / FHM002).
102mm each side of the body included (FHM001-ID).
305mm each side of the body included (FHMB001B / 2B).
Body: Black UL 94-V0 heat resistant thermoplastic (FHM001 / FHM002).
Littelfuse FHM Fuse Holder for MINI/ATM fuses – INLINE FUSE HOLDER 30A 32-58V ORANGE IP67 FOR MINI BLADE FUSE
Features
- Cover is splash proof
- IP67 cover is dustproof and waterproof
- Inline fuse holder with protective clear cap
- Clear cap lights up when an LED indicating blade fuse has blown
- Fuses not included
Specifications
| Part Number | FHM002 |
|---|---|
| Description | INLINE FUSE HOLDER 30A 32-58V ORANGE IP67 FOR MINI BLADE FUSE |
| Voltage | 32V or 32V-58V (varies by model) |
| Body | Transparent or black thermoplastic (varies by model) |
| Wire | 125°C rated GXL, tinned stranded copper |
| Wire Length | 2 x 125mm |
| Ignition Protection | UL 94 V-2 / V-0 |
| Ingress Rating | IP67 |
| Approvals | RoHS |
| Manufacturer | Littelfuse |
|---|
