Voltage: 32V
Input Terminal Rating: 20A max. per circuit.
Body: Black PA66 GF30
Cover: Transparent cover. *00580K cover features a gasket.
Terminals: Axial connections, 6.35mm (1/4”) Quick Connect terminals.
Kit Contents: Cover, base & QC terminals.
Mounting: M5 screw (00540K & 00560K), M5 threaded insert (00580K).
Pack Size: 1, 10, 100, 500
Options: Blocks and terminals can be ordered separately, minimums apply.
Notes: Each fuse branch is independently powered. Fuses are not included.

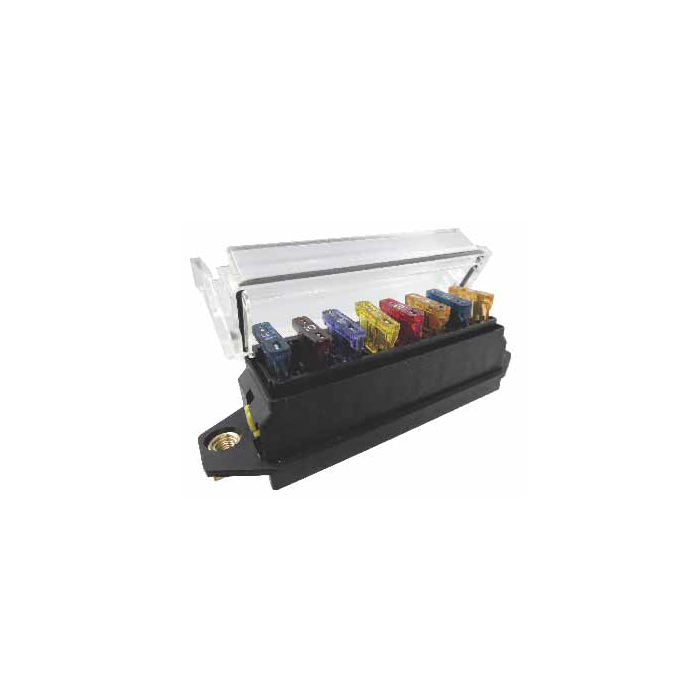

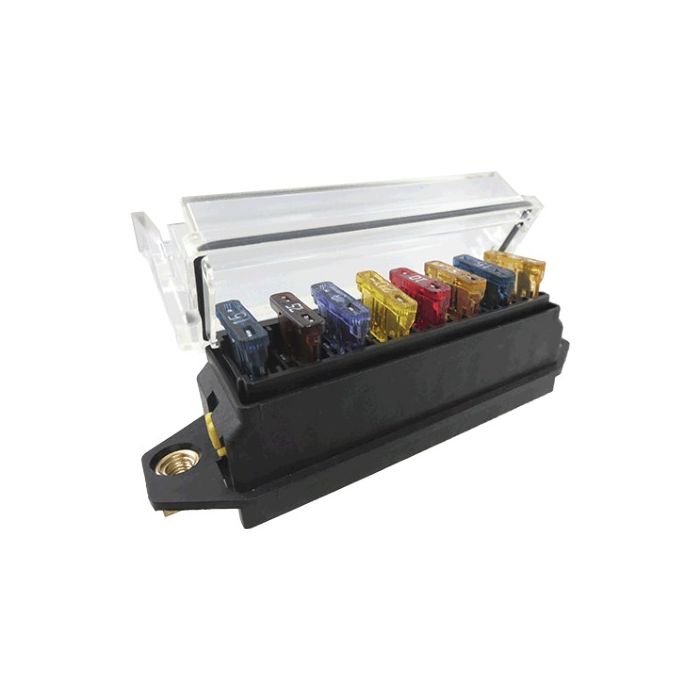

MTA 00580 Fuse Block for ATO/ATC fuses – FUSE BLOCK KIT 8 POLE & COVER,GASKET+SECONDARY LOCK FOR AUTO BLADE FUSES

Features

Axial connection
1/4" Quick Connects included and installed
Clear plastic cover for fast visual confirmation of fuse amp rating
LED indication for easy identification of blown fuses when LED auto fuses are installed
Each fuse branch is independently powered

Specifications

Part Number	00580K
Description	FUSE BLOCK KIT 8 POLE & COVER,GASKET+SECONDARY LOCK FOR AUTO BLADE FUSES
Voltage	32V
Input Terminal Rating	20A max. per circuit
Max Amps Per Block	80A, 100A, 135A
No. Poles	4, 6, 8
Body	Black PA66 GF30
Cover	Transparent cover (00580K cover features a gasket)
Terminals	6.35mm (1/4") quick connect terminals, #07501BK
Included Terminals	8 x 07501, 12 x 07501, 16 x 07501
Mounting	M5 screw (00540K & 00560K), M5 threaded insert (00580K)
Kit Contents	Fuse cover, base & QC terminals
Approvals	RoHS

More Information

More Information
Manufacturer	MTA
