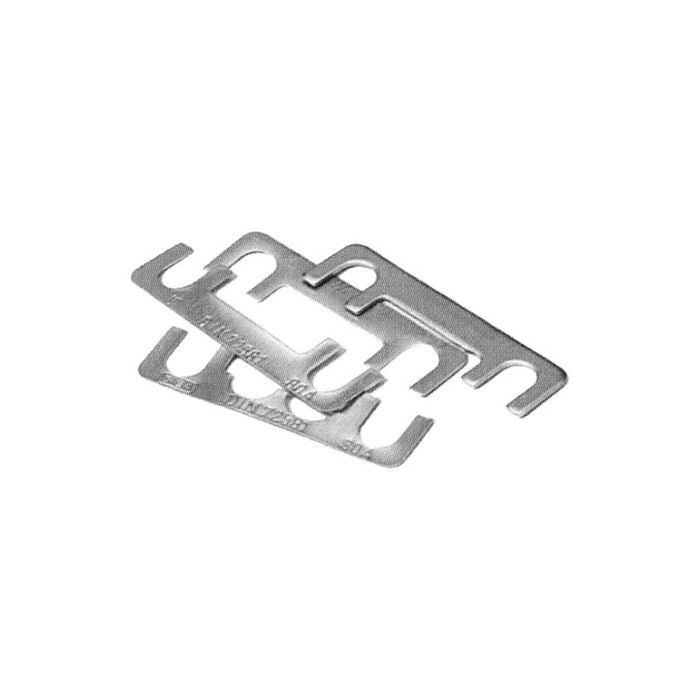

Littelfuse FBM125 Littelfuse FBM125 Fuse Strip 125A 36VDC (100 pieces)
Special Price
$154.84
Regular Price
$158.00
In stock
SKU
FBM125
Littelfuse FBM125 Littelfuse FBM125 Fuse Strip 125A 36VDC (100 pieces) is available to buy in increments of 1
Littelfuse FBM125 Fuse Strip 125A 36VDC
Littelfuse FBM125 Fuse Strip 125A 36VDC
Voltage: 36VDC
Holders: In-Line Holder & Blocks (Midifuse Type)
Mounting: M5 studs
Pack Size: 10, 100
Holders: Inline & Blocks
Notes : * Ratings not mentioned in DIN standards.
Can be replaced by Midifuse.
Approvals: 72581/2
Littelfuse FBM Fuses, Fuse Bars, Fuse Strips – FUSE STRIP 125A 36VDC
Features
- Three fuse elements in one cartridge, with the same or differing ampere ratings
- Protects three circuits with a single design
- OEM equivalent to fuses used on Infiniti and Nissan vehicles manufactured since 2002
- Element window and UL 94 housing
Specifications
| Part Number | FBM125 |
|---|---|
| Description | FUSE STRIP 125A 36VDC |
| Voltage | 58 VDC |
| Element | Copper Alloy |
| Element Window | Yes |
| Housing Flammability | UL 94 |
| Approvals | ISO 8820-4, JASO D612-4, RoHS |
| Dimensions (L x W x H) | 28.5 x 16 x 16 mm |
| Terminals | 3 x Power Inputs, 3 x Fused Outputs |
| Manufacturer | Littelfuse |
|---|
