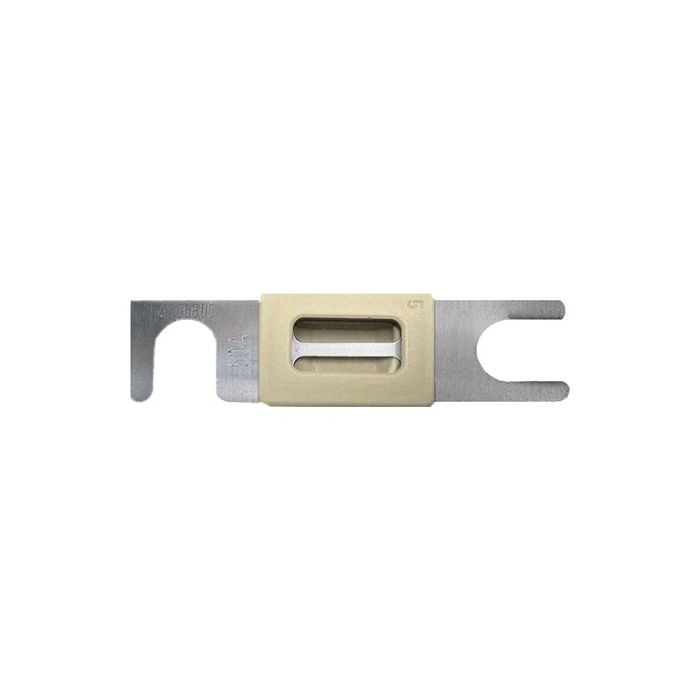

Littelfuse FBT175 Litttlefuse FBT175 Fuse 175A 48VDC Forklift Slotted Tags
Special Price
$11.86
Regular Price
$12.10
In stock
SKU
FBT175
Littelfuse FBT175 Litttlefuse FBT175 Fuse 175A 48VDC Forklift Slotted Tags is available to buy in increments of 1
Litttlefuse FBT175 Fuse 175A 48VDC Forklift Slotted Tags
Litttlefuse FBT175 Fuse 175A 48VDC Forklift Slotted Tags
FBT Specifications
I.R.: 6 x rated current at 48VDC
Voltage: 48VDC
Pack Size: 5, 10, 50
Fuse Holder Body: Ceramic outer.
Holders: Block (page 126)
Notes: Also available without housing.
* Not mentioned in the standards.
Forklift & Lift Truck Fuses 48VDC – FUSE 175A 80VDC SLOTTED TAGS
Features
- Designed for high current circuit protection to protect starter cables
- Ideal for starter and alternator connectors
- Allows starter motor or winch loads to run without blowing, but opens on a direct short
- Element window
- RoHS compliant
Specifications
| Part Number | FBT175 |
|---|---|
| Description | FUSE 175A 80VDC SLOTTED TAGS |
| Voltage | 48VDC (30A-425A); 80VDC (500A-800A) |
| I.R. | 2.5kA at 48VDC, 3kA at 80VDC |
| Characteristic | Fast Acting |
| Mounting | M10 or 3/8" studs |
| Element Window | Yes |
| Approvals | DIN 43560, IEC60269-4, TUV, UL 248, RoHS |
| Ampere Rating | 30A to 800A |
| POWCAL Voltage | 32VDC |
| POWCAL Characteristic | Slow Acting |
| POWCAL Mounting | M8 or 5/16" studs |
| POWCAL Terminal | POWCAL1-2 tin plated zinc alloy; POWCAL3-5 tin plated copper |
| POWCAL Continuous Rated Current | 150A (POWCAL1-2), 180A (POWCAL3-5) |
| POWCAL Max. Melting Current | 2000A |
| POWCAL Min. Melting Current | 380A to 700A |
| POWCAL Cable Size | 16 to 50 mm² |
| Manufacturer | Littelfuse |
|---|
