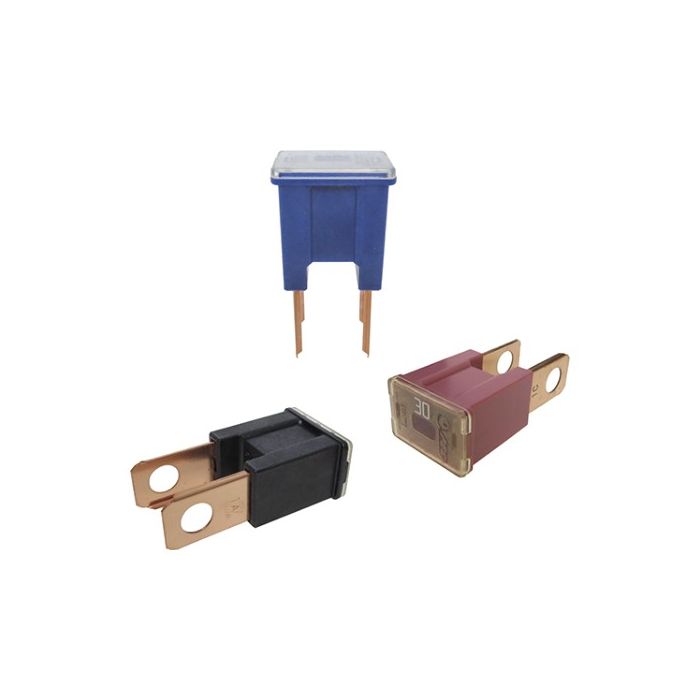

Pal Fuses Straight Male Terminal Large BTF080, 80A 32VDC Fuse Link
Special Price
$4.31
Regular Price
$4.40
In stock
SKU
BTF080
Pal Fuses Straight Male Terminal Large BTF080, 80A 32VDC Fuse Link is available to buy in increments of 1
Pal Fuses Straight Male Terminal Large BTF080, 80A 32VDC Fuse Link
Pal Fuses Straight Male Terminal (BTF) – FUSE 80A 32VDC BLACK
Features
- Slow acting fuse link
- Meets ISO 8820 / JASO D612
- Small and large body options
- Bent and straight male terminal versions
- Circular hole (BTF) and cut-out hole (BTFC) variants
Specifications
| Part Number | BTF080 |
|---|---|
| Description | FUSE 80A 32VDC BLACK |
| Voltage | 32VDC |
| I.R. | 1000A at 32VDC |
| Characteristic | Slow Acting |
| Ampere Rating | 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 140A |
| Body Type | Small, Large |
| Body Colour | Pink, Green, Red, Yellow, Brown, Black, Blue, White, Maroon |
| Approvals | ISO 8820 / JASO D612, RoHS |
| Fixing | Small body 36mm; large body 49mm; cut-out hole Ø6.5mm |
| Manufacturer | Prolec |
|---|
