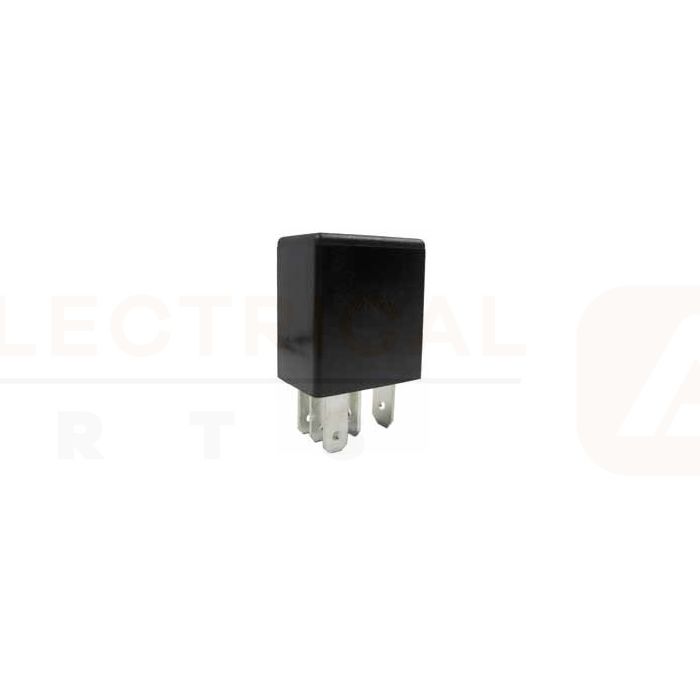

Song Chuan 8711CCR124 24V Change Over 5 pin (SPDT) Micro Relay
Special Price
$7.74
Regular Price
$7.90
In stock
SKU
8711CCR124
Song Chuan 8711CCR124 24V Change Over 5 pin (SPDT) Micro Relay is available to buy in increments of 1
24V Change Over 5 pin (SPDT) Micro Relay
24V Change Over 5 pin (SPDT) Micro Relay
NO:15A / NC:10A (28VDC)
Coil Current: 97.5mA (12V), 49.6mA (24V)
Coil Resistance: 123Ω (12V), 483Ω (24V)
Contact Voltage Drop: Typ. 40mV at 10A
Contact Material: Silver Tin Oxide alloy (AgSno)
Operate / Release Time: 10ms max. / 10ms max.
Enclosure: Flux tight.
Temperature: -40 to +125°C (no freezing)
Mechanical Life Expectancy: 10 million operations.
Pack Size: 1pc
Options: Sealed Washable / Dust cover enclosure. Diode protection.
Approval: ELV-2000/53/EC RoHS
Song Chuan 871 ISO Micro Relays SPDT 12V or 24VDC – MICRO RELAY SPDT 24VDC 15A/10A 5 PIN RESISTOR PROTECTION
Features
- Flux tight enclosure
- Optional sealed washable or dust cover enclosure
- Optional diode protection
- Approved to ELV-2000/53/EC and RoHS
Specifications
| Part Number | 8711CCR124 |
|---|---|
| Description | MICRO RELAY SPDT 24VDC 15A/10A 5 PIN RESISTOR PROTECTION |
| Coil Current | 97.5mA (12V), 49.6mA (24V) (871); 133mA (12V), 66.7mA (24V) (896H) |
| Coil Resistance | 123Ω (12V), 483Ω (24V) (871); 90Ω (12V), 360Ω (24V) (896H) |
| Contact Material | Silver tin oxide (AgSnO alloy) |
| Enclosure | Flux tight |
| Temperature | -40 to +125°C |
| Mechanical Life Expectancy | 10 million operations |
| Options | Sealed Washable / Dust cover enclosure; Diode protection |
| Approval | ELV-2000/53/EC |
| Terminal Sizes | 4.8mm, 6.3mm (1/4") |
| Protection | ½W 680Ω resistor (12V); ½W 2700Ω resistor (24V) |
| Ampere Rating (871) | 35A N/O, 20A N/C (12V SPDT); 15A N/O, 10A N/C (24V SPDT) |
| Ampere Rating (896H) | 50A N/O, 30A N/C (12V SPDT); 20A N/O, 15A N/C (24V SPDT) |
| Bracket | No |
| Manufacturer | Song Chuan |
|---|
