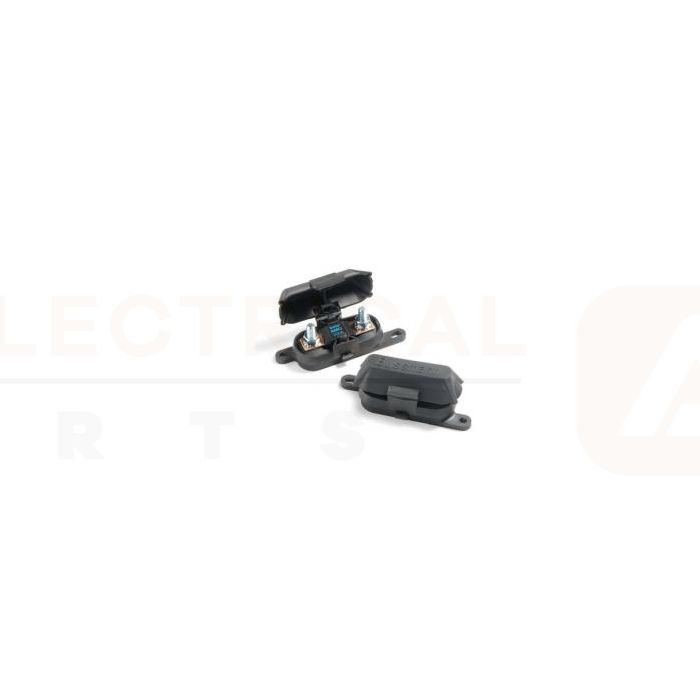

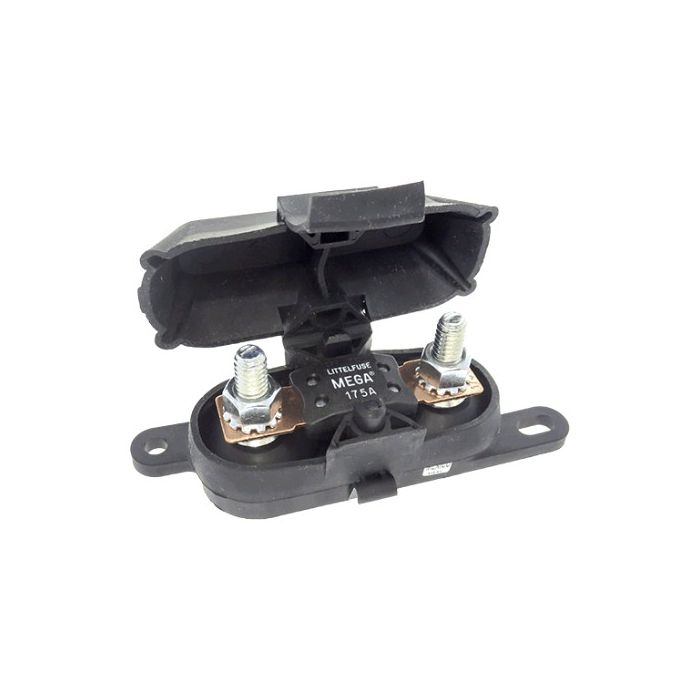

Bussmann FMG-211 Megafuse Fuse Block 500A 5/16-18 Studs

Name: Bussmann FMG-211 Megafuse Fuse Block 500A 5/16-18 Studs
Brand: Bussmann
SKU: FMG-211
Price: 23.72 AUD
Availability: InStock

Special Price $23.72 Regular Price $24.20

In stock

SKU

FMG-211

Bussmann FMG-211 Megafuse Fuse Block 500A 5/16-18 Studs is available to buy in increments of 1

Bussmann FMG-211 Megafuse Fuse Block 500A 5/16-18 Studs

Rating: 300A

Body: Black UL rated 94V-0 thermoplastic

Accessories: Includes cover & sems nuts.

Studs: 5/ 16-18 threaded, zinc plated steel studs.

Cover: Black thermostatic elastomer (optional red cover).

Pack Size: 1

Bussmann FMG Fuse Blocks for AMG/MEGA fuses – FUSE BLOCK 500A STANDARD COVER 5/16-18 STUDS FOR MEGA FUSE

High current Mega fuse block for battery and alternator connections
Interlocking pins allow connecting additional fuse holders for multi-fuse applications
Cables can be routed to studs from nearly any direction (32V block)
Both covers feature end cut-outs for wiring (32V block)

Part Number	FMG-211
Description	FUSE BLOCK 500A STANDARD COVER 5/16-18 STUDS FOR MEGA FUSE
Voltage Rating	70VDC
Current Rating	500A
Body & Cover	Black glass filled thermoplastic
Studs	M8 threaded
Torque Rating	5 Nm
Agency Approval	VS-005002/VS-005005
Note	Fuse not included
Voltage Rating (32V Block)	32VDC
Current Rating (32V Block)	500A
Body (32V Block)	Black UL rated 94V-0 thermoplastic
Cover (32V Block)	Black flexible thermoplastic elastomer; red cover optional
Wire Size (32V Block)	#8 AWG / 8mm²
Studs (32V Block)	Plated steel studs, 5 Nm torque rating
Approvals (32V Block)	RoHS

More Information
Manufacturer	Bussmann
