Mini Relay Kit includes;
1 x 00670 (Clear Cover With Gasket)
1 x 00660 (Mini Relay Housing)
1 x 00680 (Bottom Cover)
20 x 01650 (Terminals 1 - 2.5mm² 20A, F 6.3mm)
2 x 00690 (Mounting Bracket Male)
2 x 00691(Mounting Bracket Female)

Voltage: 32V
Maximum Continuous Current Ratings:
225A (00655K), 150A (00705K),120A (00665K)
Body: Black, Cover: Transparent, includes gasket.
Terminals: Axial connections. Other terminal options include various terminal sizes, reeled and busbar types.
Contact sales for further information.
Mounting: M8 screw
Pack Size: 1
Features: All three blocks are modular and can be ganged by slide locking them to each other.
Notes: Fuses, fuse extractor and relays are not included.

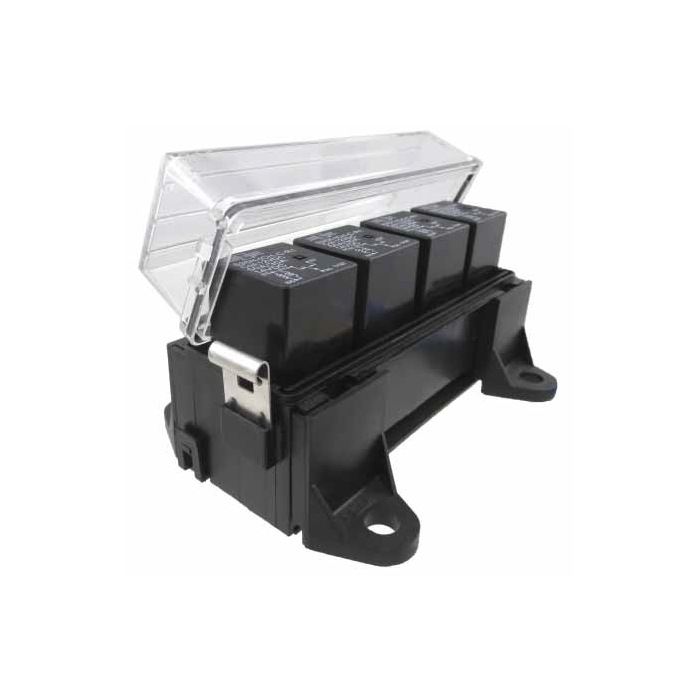

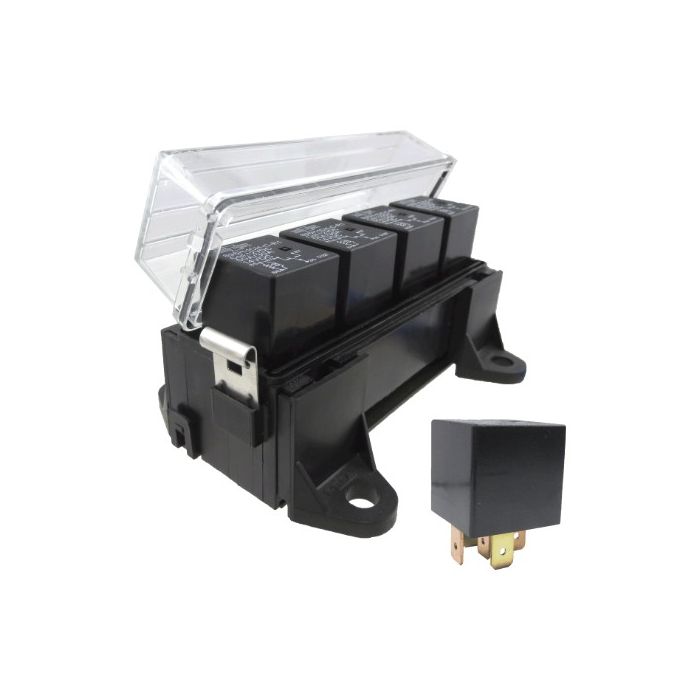

MTA 00665 Relay Holder for 4 x ISO Mini relays – MINI RELAY BOX 4 WAY + BRACKETS + TERMINALS

Features

All 3 blocks can be ganged to create a power distribution centre
Side wall locks can attach auto fuse holders
Side wall locks can attach mini and maxi relay holders
Side wall lateral lock feature
Fuses, fuse extractor and relays are not included

Specifications

Part Number	00665K
Description	MINI RELAY BOX 4 WAY + BRACKETS + TERMINALS
Voltage	32V
Maximum Continuous Current Ratings	225A (00655K), 150A (00705K), 120A (00665K)
Body	Black
Cover	Transparent, includes gasket
Terminals	Axial connections; other terminal options include various terminal sizes, reeled and busbar types
Terminal Sizes (Busbar Terminals F 6.3)	RL 2-3mm² (07912), RL 4-6mm² (07911)
Terminal Sizes (Fuse Kit)	0.5 to 1.5mm²
Mounting	M8 screw
Overall Height	64mm

More Information

More Information
Manufacturer	MTA
mpn	00655K
Shipping Weight	0.250
