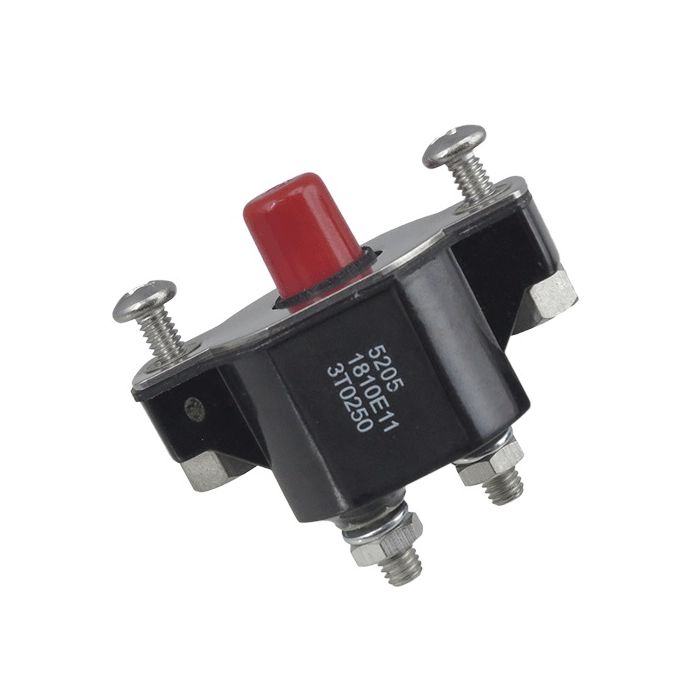

Mechanical Products 25A Circuit Breakers 1810E113T0250 Panel Mount Series 18

Special Price $71.00 Regular Price $72.60
In stock
SKU
1810E113T0250
Mechanical Products 25A Circuit Breakers 1810E113T0250 Panel Mount Series 18 is available to buy in increments of 1

Mechanical Products 25A Circuit Breakers 1810E113T0250 Panel Mount Series 18

Mechanical Products 25A Circuit Breakers 1810E113T0250 Panel Mount Series 18

I.R. : (1800 series ) 3k at 120VAC / 32VDC (Standard Calibration) A
I 3kA t 120VAC, 5k t 32VDC (High Ambient*) I.R. : (1810 series) a A a
Reset Mechanism: Type III, Manual Reset.
Button: Red with 45 white ampere marking. ยบ
Panel Mount: Secure breaker using 2 x #8-32 screws (included), which thread into built-in self-locking nuts.
Terminals (1800 series): Screw terminals includes #8-32 screws and lockwasher.
Terminals (1810 series): Threaded stud includes #10-32 nuts and lockwasher. Stud is 11.4mm long.
Pack Size: 1,
Vibration Rating: 10g per MIL-STD-202, Method 204, Test Condition A.
Options: Type 1, Automatic reset version available, contact sales for information.
Notes: Contact sales for dimensions, electrical & trip specifications for different styles of breaker.
*High Ambient style increases ultimate trip rating from 100% to 110% (min.) & 135% to 143% (max.) at 25 deg C.
Approvals: ABYC E11, UL 1077 & SAE J553 (I.R. rating)
SAE J1428 (weatherproof), SAE J553 (endurance)
UL 1077 (dielectric strength 1500VAC), UL 1500 (ignition proof)
MIL-STD-202 (vibration, shock, corrosion & humidity).
