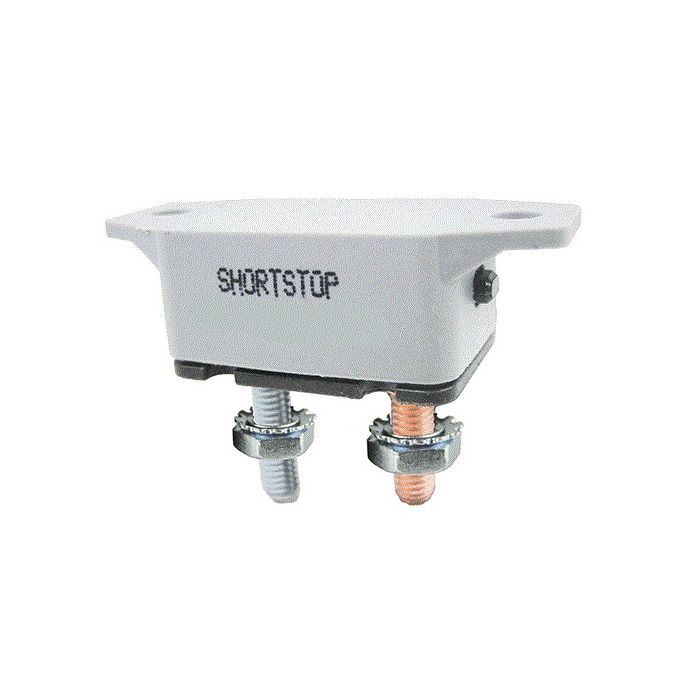

Bussmann 123A05-B2P 5A Circuit Breaker Surface Mount Short Stop
Special Price
$11.86
Regular Price
$12.10
In stock
SKU
123A05-B2P
Bussmann 123A05-B2P 5A Circuit Breaker Surface Mount Short Stop is available to buy in increments of 1
5A Circuit Breaker Surface Mount Short Stop
5A Circuit Breaker Surface Mount Short Stop
Applications: Battery chargers, trucks, buses, RVs, trolling motors, etc.
Function Options: Auto, Manual or optional Modified Reset Circuit Breakers.
I.R.: 2.5kA @ 12VDC (Branch circuit protection), please contact sales for further info.
Voltage: 14VDC (121 Series), 28VDC (123 series)
Operating Temp: -40°C to 85°C
Storage Temp: -40°C to 125°C
Ingress Protection Rating:I IP66 (on plastic cover type only, excludes terminals).
Pack Size: Stock lines 1pc, indent items 250pcs.
Notes: Keps lock nuts included with circuit breakers.
Bussmann 123 Short Stop Circuit Breakers (123-B2P) – SHORT STOP CIRCUIT BREAKER 5A 28VDC TYPE III PLASTIC B BRACKET
Features
- Ignition Protected
- Manual reset button protected by IP covers against dust and water
- Terminal boots protect connections from accidental shorts
- Applications include battery chargers, 4x4s, caravans, trucks, buses, trolling motors and RVs
- Keps lock nuts included with circuit breakers
Specifications
| Part Number | 123A05-B2P |
|---|---|
| Description | SHORT STOP CIRCUIT BREAKER 5A 28VDC TYPE III PLASTIC B BRACKET |
| Voltage | 14VDC (121 Series), 28VDC (123 Series) |
| I.R. | 2.5kA at 12VDC (branch circuit protection) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 125°C |
| Ampere Rating | 5A, 8A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A |
| Terminals | 2 x #10-32 studs |
| Mounting Hole | Bracket mounting holes 4.98 mm diameter |
| Ingress Protection Rating | IP66 (plastic cover only, excluding terminals) |
| Approvals | J553, J1171 |
| Manufacturer | Bussmann |
|---|
