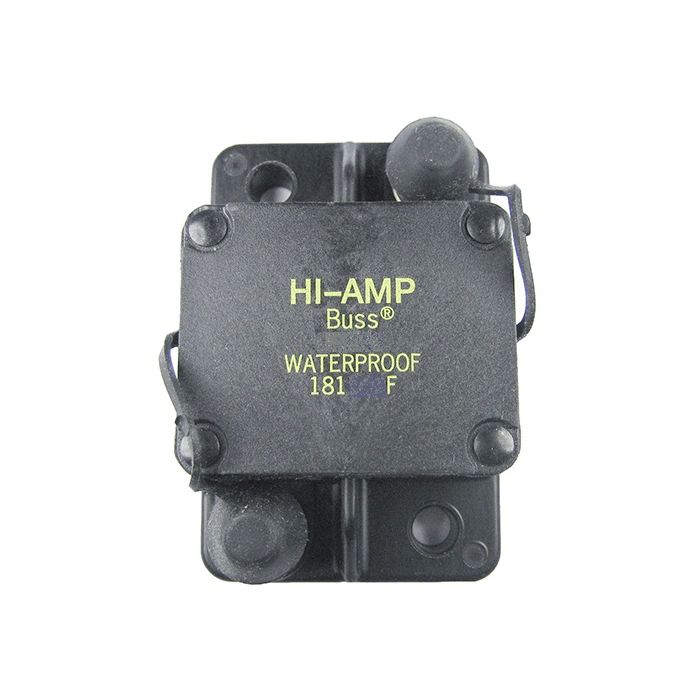

Bussmann 181080F-12-1 80A Circuit Breaker Surface Mount High Ampere
Special Price
$59.29
Regular Price
$60.50
In stock
SKU
181080F-12-1
Bussmann 181080F-12-1 80A Circuit Breaker Surface Mount High Ampere is available to buy in increments of 1
Bussmann 181080F-12-1 80A Circuit Breaker Surface Mount High Ampere
Bussmann 181080F-12-1 80A Circuit Breaker Surface Mount High Ampere
I.R.: 3kA 30VDC (Series 81) at 1
3 at 48 285 kA VDC (Series )
Voltage: 30VDC (Series 81 1 )
4 VDC (Series 85) 8 2
Pack Size: Stock lines 1pc, indent items 60pcs
Termination: 1/4”-28 threaded studs (Series 181)
M6 threaded studs (Series 285)
Operating Temp: - °C to 8 °C 40 5 (All Series)
Storage Temp: - °C to 1 °C 34 49 (Series 181),
- °C to 1 °C 40 25 (Series 285).
Ingress Protection Rating: I 67 P
Housing: UL 94 V-0 hermoset plastic t .
Indicator: Reset mechanism provides visual indication of tripped
condition on manual breakers . reset (Series 285)
Features: Ignition Protected
Stud Insulator Caps: Included
Terminal Hardware: Stainless steel nuts and lock washers installed.
Notes: The 285 series is an upgrade of the original 185 series. It can
be used as a drop in replacement for the 185 series.
Bussmann 181 Hi-Amp Circuit Breakers, Surface Mount – CIRCUIT BREAKER 80A 30VDC SURFACE MOUNT 1/4" STUD AUTO RESET
Features
- Ignition Protected weatherproof design
- Some models sealed for engine compartment and bilge area applications
- Typically used in auxiliary and accessory circuits for automotive and marine applications
- 285 Series: larger contact plate, low profile design, M6 studs
- 285 Series is a drop-in replacement for the 185 Series
Specifications
| Part Number | 181080F-12-1 |
|---|---|
| Description | CIRCUIT BREAKER 80A 30VDC SURFACE MOUNT 1/4" STUD AUTO RESET |
| Voltage | 30VDC (181 Series), 48VDC (285 Series) |
| Ampere Rating | 25A to 150A |
| Interrupt Rating | 3kA at 30 VDC (181 Series), 3kA at 48 VDC (285 Series) |
| Type | T1 (181 Series), TIII PTT (285 Series) |
| Reset | Auto Reset (181 Series), Manual Reset (285 Series) |
| Termination | 1/4"-28 threaded studs (181 Series), M6 threaded studs (285 Series) |
| Operating Temp | -40°C to 85°C (All Series) |
| Storage Temp | -34°C to 149°C (181 Series), -40°C to 125°C (285 Series) |
| Ingress Protection Rating | IP67 |
| Housing | UL 94 V-0 thermoset plastic |
| Indicator | Reset mechanism provides visual indication of tripped condition on manual breakers |
| Colour | Black (184 & 185 Series), Yellow (285 Series) |
| Terminal Hardware | Stainless steel nuts and lock washers installed |
| Stud Insulator Caps | Included |
| Mounting Holes | 2 x 6.60 mm diameter |
| Approvals | SAE J1625, ABYC E-11, SAE J1171 |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 9347729002207 |
