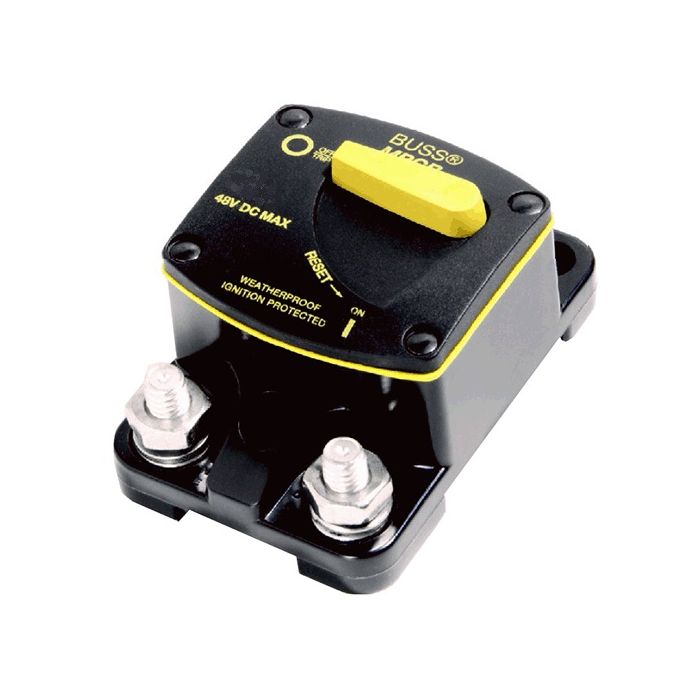

Bussmann 187135F-03-1 135A Marine Rated Surface Mount Circuit Breaker

Special Price $106.70 Regular Price $110.00
In stock
SKU
187135F-03-1
Bussmann 187135F-03-1 135A Marine Rated Surface Mount Circuit Breaker is available to buy in increments of 1

135A Circuit Breaker MRCB Surface Panel

135A Circuit Breaker MRCB Surface Panel

I.R.: Main Breaker Protection.
5kA at14VDC, 3kA at 28VDC, 1.5kA at 48VDC
Voltage: As listed in table. *Please confirm voltage with sales.
Reset Mechanism: Type III, Manual eset & witchable. T rs
Pack Size: Stock lines 1pc, indent items 60pcs.
Mounting : Options Surface or Panel Mount.
Operating Temp: -40°C to 85 °C.
Storage Temp: -40°C to 125°C
Materials: Black UL-Rated 94V-0 thermoset plastic body.
Cover and lever are UL-Rated 94V-0 thermoplastic.
Marking: Standard marking includes amp/volt ratings.
Terminal Hardware: Stainless nuts & lock washers installed on studs.
Termination: 5/16”-18 threaded studs.
Torque Rating: 8.5Nm max.
Mounting Torque Rating: 5.6Nm max.
Ingress Protection Rating: I 66 P
Features: Single lever for manual reset switching operations.
Capable of withstanding 3000 on/off cycles at 48VDC.
Ignition Protected weatherproof. and
Corrosion resistive materials.
Large clearance around studs to accept large gauge wire lugs.
