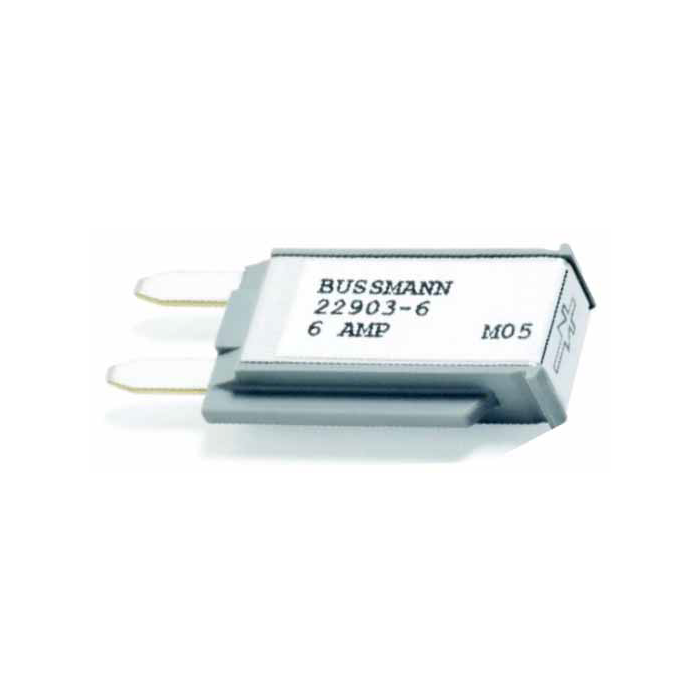

Bussmann 22903-6 Mini Blade Diode 6A
Special Price
$24.79
Regular Price
$25.30
In stock
SKU
22903-6
Bussmann 22903-6 Mini Blade Diode 6A is available to buy in increments of 1
Bussmann 22903-6 Mini Blade Diode 6A
Bussmann 22903-6 Mini Blade Diode 6A
Diode - Prevents reverse current flow. Amp rating: 6A. Keyed*.
Materials: Thermoplastic housing, grey with metal cover (229 series). Thermoplastic housing, black (02400104P)
Termination Type: Compatible with ISO 280 type fuse blocks.
Diode Key Feature*: Standard key denotes installation direction.
Wing key available for error proof installation in Bussmann VEC.
Holders: Please refer to our holder compatibility table on page 2.
Pack Size: 1
Bussmann 22903-6 Mini Blade Diode – MINI DIODE 6A MAX -KEYED
Features
- Diode key marks installation direction
- Bussmann wing key allows error-proof installation
- Provides voltage and current limiting for vehicle circuits
- Short Shunt fits any holder that accepts a Mini fuse
Specifications
| Part Number | 22903-6 |
|---|---|
| Description | MINI DIODE 6A MAX -KEYED |
| Brand | Littelfuse, Bussmann |
| Voltage | 12 or 24 VDC |
| Shunt Rating | 20A maximum continuous load |
| Diode Rating | 1A, keyed (400V PIV); 6A, keyed |
| Resistor | 5W, 68 Ω |
| Transorb | Clamp rating 27 VDC, power rating 1500W |
| Materials | Black thermoplastic housing (024001 P 13); grey thermoplastic housing with metal cover (229xx series) |
| Termination Type | 2.8mm blades, compatible with ISO blocks |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 00051712202169 |
