Bussmann 285100P 100A Circuit Breaker Panel Mount Breaker High Ampere
Special Price
$59.29
Regular Price
$60.50
In stock
SKU
285100P
Bussmann 285100P 100A Circuit Breaker Panel Mount Breaker High Ampere is available to buy in increments of 1
100A Circuit Breaker Panel Mount Breaker High Ampere

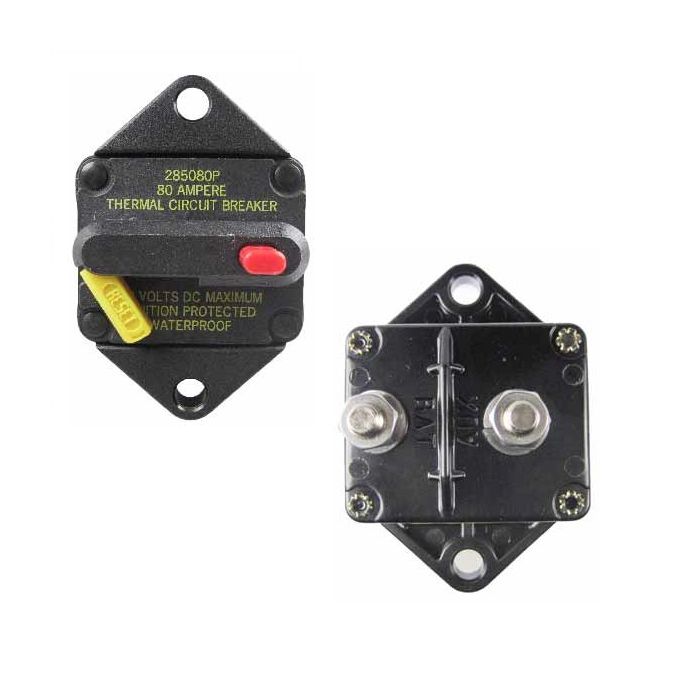

Bussmann 285 Series Circuit Breaker Panel Mount Breaker High Ampere
I.R.: 3kA at 30VDC (Series 181, 184 & 185) 3kA at 48VDC (Series 285) Voltage: 30VDC (Series 181), 42VDC (Series 184 & 185) 48VDC (Series 285) Pack Size: Stock lines 1pc, indent items 60pcs Termination: 1/4”-28 threaded studs (Series 181, 184 & 185) M6 threaded studs (Series 285) Operating Temp: -40°C to 85 °C (All Series) Storage Temp: -34°C to 149°C (Series 181, 184 & 185), -40°C to 125°C (Series 285). Ingress Protection Rating: Ip67 Housing: UL 94 V-0 thermoset plastic. Indicator: Reset mechanism provides visual indication of tripped condition on manual reset breakers. Black colour (Series 184 & 185), Yellow colour (Series 285). Features: Ignition Protected and weatherproof. Terminal Hardware: Stainless steel nuts and lock washers installed. Notes: The 184 series is manual reset only. The 285 series is a drop in replacement for the 185 series
Bussmann 285 Hi-Amp Circuit Breakers, Panel Mount – HI-AMP CIRCUIT BREAKER 100A 48VDC PANEL MOUNT MANUAL RESET / PUSH TO TRIP
Features
- Ignition protected and weatherproof
- Some models sealed for engine compartment and bilge areas
- Typically used in auxiliary and accessory circuits for automotive and marine applications
- Push to Trip Button (PTT) on 285 series
- Drop-in replacement for the 185 series
Specifications
| Part Number | 285100P |
|---|---|
| Description | HI-AMP CIRCUIT BREAKER 100A 48VDC PANEL MOUNT MANUAL RESET / PUSH TO TRIP |
| Type | Type TIII PTT |
| Reset | Manual Reset |
| Ampere Rating | 25A, 30A, 35A, 40A, 50A, 60A, 70A, 80A, 90A, 100A, 110A, 120A, 135A, 150A |
| Termination | M6 threaded studs |
| Terminal Hardware | Stainless steel nuts and lock washers installed |
| Ingress Protection Rating | IP67 |
| Housing | UL 94 V-0 thermoset plastic |
| Indicator | Bright yellow reset mechanism provides visual indication of tripped condition on manual breakers |
| Mounting | Panel mount, mounting holes 6.60 mm diameter (2) |
| Gasket Accessory | B156-7003-J, black Santoprene, optional flange mount gasket |
| Approvals | SAE J1625, ABYC E-11, SAE J1171 |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 9347729003068 |
