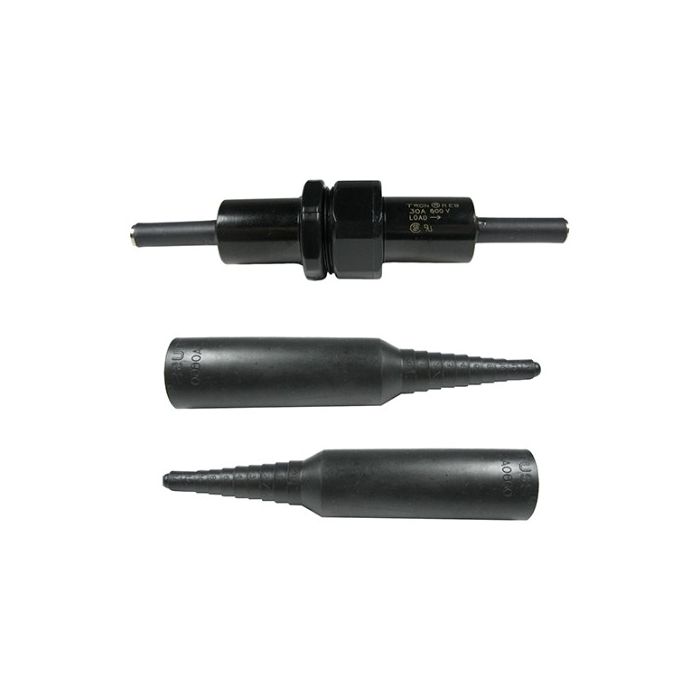

Bussmann 2A0660 Weather Proof Boot Single Pole
Special Price
$31.00
Regular Price
$31.39
In stock
SKU
2A0660
Bussmann 2A0660 Weather Proof Boot Single Pole is available to buy in increments of 1
Bussmann 2A0660 Weather Proof Boot Single Pole
Bussmann HEB-AA Fuse Holder for 10x38mm fuses – WEATHER PROOF BOOT SINGLE POLE
Features
- High voltage rating accommodates many power applications
- Single piece molded body minimizes component count
- Wire leads are pre-attached to fuse clips for quick assembly
- Wide range of terminal options to suit different wire sizes and fixing
- UL Recognised
Specifications
| Part Number | 2A0660 |
|---|---|
| Description | WEATHER PROOF BOOT SINGLE POLE |
| Rating | 30A (max) |
| Voltage | 600VAC / 1000VDC |
| Fuse | Midget Fuses (10.3 x 38.1mm) |
| Terminals | Tin plated brass |
| Wire Length | 200mm |
| Crimp Terminal | Solid or stranded cable, 1 cable (-) per terminal, #8AWG to #16AWG |
| Fuse Sizing | Minimum 200% of the RMS load current when boots are used |
| Approvals | UL |
| IP Rating | IP67 with boots fitted |
| Manufacturer | Bussmann |
|---|
