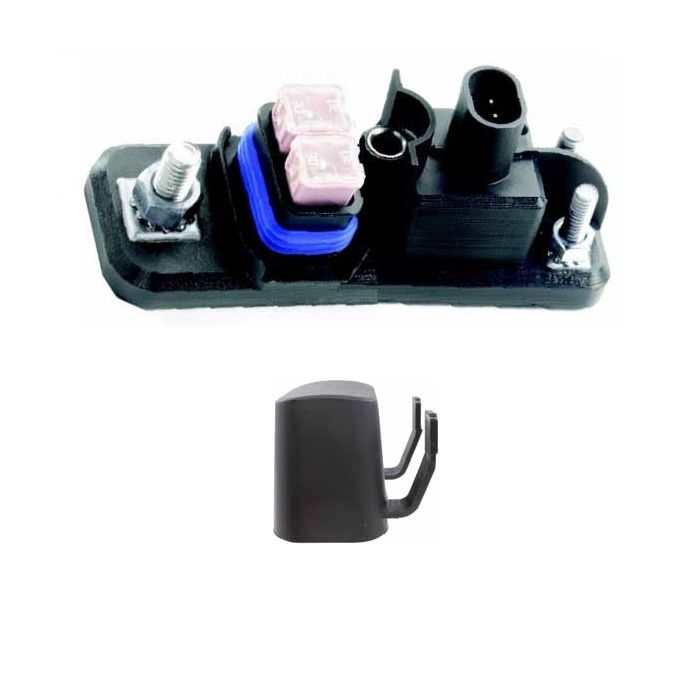

Bussmann 37702-1AN0025 60A Fuse & 12V Relay Power Distribution Module

Bussmann 37702-1AN0025 60A Fuse & 12V Relay Power Distribution Module

These distribution modules are designed for high current applications and suitable for placement in extreme moisture and high vibration environments. A silicone seal and included removable fuse cover offer a weather-tight enclosure for the fuse positions. Both modules feature rugged M8 power input studs. Multiple units may be connected together using a buss bar. They can also be bussed to any of Bussmann's PDMs

Rating (PFM): Each inline fuse; up to 60A.
Relay Rating (PRM): 70A (12VDC) or 25A (24VDC) steady-state relay.
Relay protection fuse; up to 60A. Non-switched inline fuse; up to 60A.
Temperature Rating: -40 °C to +85 °C.
Body: UL-Rated 94V-0 thermoplastic with Silicone seal.
Terminals: Tin-plated copper terminals.
Studs: Plated steel. Includes Keps nuts.
Input Termination: M8 threaded stud.
Output Termination: Two M6 threaded studs.
Relay Signal Connector Kit: 50126K as above, for use with PRM.
Ingress Protection Rating: IP66 (excluding stud connections).
Mounting: Counter Rotation Feature (CRF) included to prevent the module rotating on single bolt installations.
Bussing: Use 3771BUS busbars to join multiple PRMs/PFMs. Stud insulator caps included with busbars.
Accessories: Relay signal connector, bus bars, stud caps, separators and service components.
Suitable Fuses: JTFxxx (20A - 60A), not included.
Notes: Each Power Relay Module requires 1 x PRM Relay Signal Connector Kit (50126K) to control the relay. Fuses are not included.
