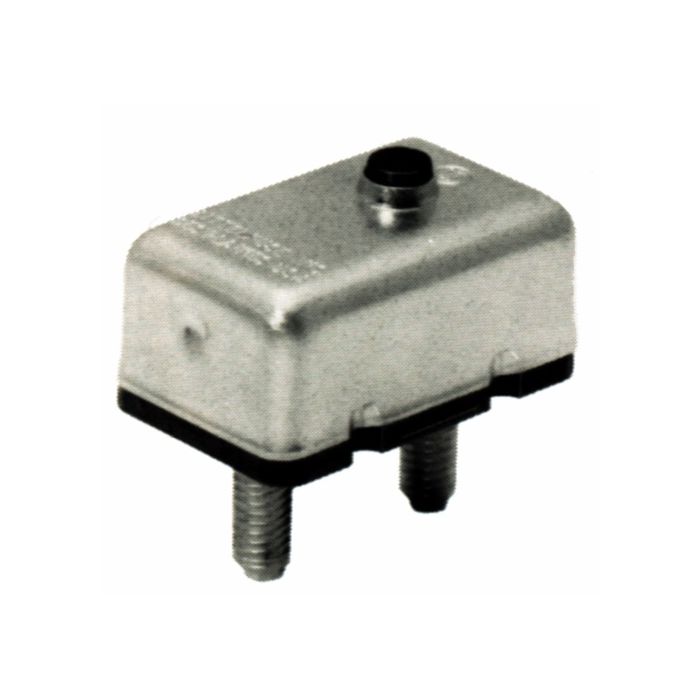

Bussmann 814010 10A Manual Reset Circuit Breaker
Special Price
$5.39
Regular Price
$5.50
In stock
SKU
814010
Bussmann 814010 10A Manual Reset Circuit Breaker is available to buy in increments of 1
Bussmann 814010 10A Manual Reset Circuit Breaker
Short Stop Circuit Breakers (814 Series) – SHORT STOP CIRCUIT BREAKER 10A 24VDC TYPEIII METAL NO BRACKET
Features
- Type I: automatic reset, sometimes called "cycling breakers"
- Type II: modified reset, stays tripped while power is applied to the circuit
- Type III: manual reset via indicator button or lever, with optional switchable external button
- 813 Series includes a mounting bracket
- Suited to automotive applications
Specifications
| Part Number | 814010 |
|---|---|
| Description | SHORT STOP CIRCUIT BREAKER 10A 24VDC TYPEIII METAL NO BRACKET |
| Ratings (CB174) | 7A, 8A, 10A, 15A, 20A, 25A, 30A, 35A & 40A |
| Voltage (CB174) | 250VAC, 32VDC |
| Terminal Options (CB174) | 6.35mm Q.C (straight/90° bend), screw terminals (90° bend), combination Q.C. & screw terminal |
| Mounting (CB174) | Low voltage panel and stud mount |
| Ratings (812 Series) | 8A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A |
| Voltage (812 Series) | 12VDC |
| Ratings (813 Series) | 5A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 35A, 40A, 50A |
| Voltage (813 Series) | 12VDC |
| Ratings (814 Series) | 10A, 12A, 15A, 20A, 25A, 30A, 40A, 50A |
| Voltage (814 Series) | 24VDC |
| Manufacturer | Bussmann |
|---|
