Bussmann 814012 12A Manual Reset Circuit Breaker
Special Price
$5.39
Regular Price
$5.50
In stock
SKU
814012
Bussmann 814012 12A Manual Reset Circuit Breaker is available to buy in increments of 1

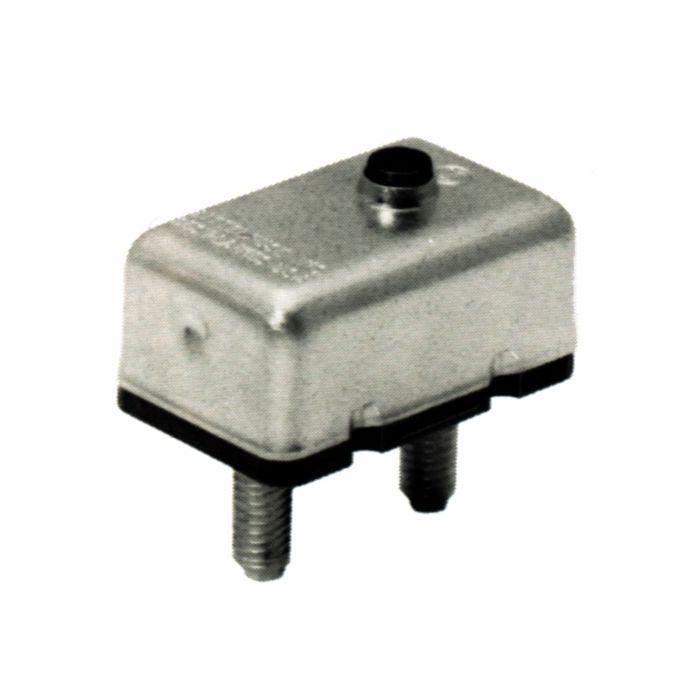

Bussmann 814012 12A Manual Reset Circuit Breaker
Bussmann 814012 12A Manual Reset Circuit Breaker
These 814 series single pole thermal circuit breakers designed for various applications including battery chargers, trucks, buses, caravans, RV's, electric vehicles etc. Compact design and easy to mount. Features a metal body.
Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.
Sample P/N: SWE-814020 (for 20A breakers)
Ratings: 12A
Voltage: 24VDC
Pack Size (bag): 1
Short Stop Circuit Breakers (814 Series) – SHORT STOP CIRCUIT BREAKER 12A 24VDC TYPEIII METAL NO BRACKET
Features
- Type I: automatic reset, sometimes called "cycling breakers"
- Type II: modified reset, stays tripped while power is applied to the circuit
- Type III: manual reset via indicator button or lever, with optional switchable external button
- 813 Series includes a mounting bracket
- Suited to automotive applications
Specifications
| Part Number | 814012 |
|---|---|
| Description | SHORT STOP CIRCUIT BREAKER 12A 24VDC TYPEIII METAL NO BRACKET |
| Ratings (CB174) | 7A, 8A, 10A, 15A, 20A, 25A, 30A, 35A & 40A |
| Voltage (CB174) | 250VAC, 32VDC |
| Terminal Options (CB174) | 6.35mm Q.C (straight/90° bend), screw terminals (90° bend), combination Q.C. & screw terminal |
| Mounting (CB174) | Low voltage panel and stud mount |
| Ratings (812 Series) | 8A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A |
| Voltage (812 Series) | 12VDC |
| Ratings (813 Series) | 5A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 35A, 40A, 50A |
| Voltage (813 Series) | 12VDC |
| Ratings (814 Series) | 10A, 12A, 15A, 20A, 25A, 30A, 40A, 50A |
| Voltage (814 Series) | 24VDC |
| Manufacturer | Bussmann |
|---|
