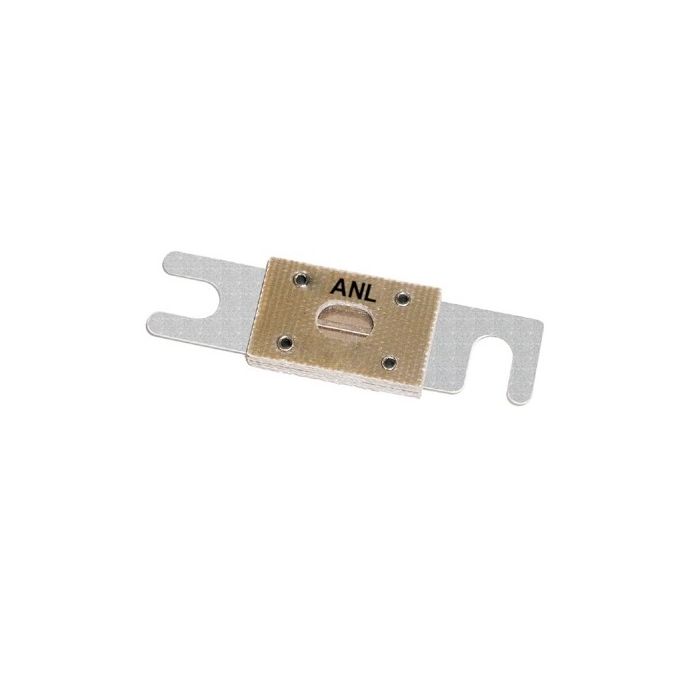

Bussmann ANL100 100Amp ANL Fuse

Name: Bussmann ANL100 100Amp ANL Fuse
Brand: Bussmann
SKU: ANL100
Price: 28.03 AUD
Availability: InStock

Be the first to review this product

Special Price $28.03 Regular Price $28.60

In stock

SKU

ANL100

Bussmann ANL100 100Amp ANL Fuse is available to buy in increments of 1

Bussmann 100Amp ANL Fuse

Details

Bussmann 100Amp ANL Fuse

Up to 32V AC

Up to 80V DC

Fast Acting

Bussmann forklift truck and battery isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work plat forms, and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses.

Bussmann ANL Fuses – FUSE 100A 32VAC 80VDC FAST ACTING

Features

Non-time-delay low voltage limiter for isolating faults in battery operated systems
Designed for heavy duty loads such as forklift trucks, hand trucks, and motorized work platforms
Suited to marine, aviation, and other DC battery operated systems
Rugged construction and stud mounted bolt-in design for long life in adverse conditions
Element inspection window with visible mica

Specifications

Part Number	ANL100
Description	FUSE 100A 32VAC 80VDC FAST ACTING
Voltage (ANL)	32VAC / 80VDC
Voltage (ANN)	125VAC / 80VDC
I.R. (ANL)	2.7kA (All ratings, 80VDC); 6kA (35A to 500A, 32VAC); 2.7kA (600A to 750A, 32VAC)
I.R. (ANN)	2.5kA (VAC); 2.7kA (VDC)
Characteristic (ANL)	Fast Acting
Characteristic (ANN)	Very Fast Acting
Ampere Range (ANL)	35A to 750A
Ampere Range (ANN)	10A to 800A
Ignition Protected (ANL)	35A to 500A (SAE J1171)
Ignition Protected (ANN)	Not ignition proof
Materials	Silver plated copper link
Mounting	M8 or 5/16" studs
Element Window	Inspection window with visible mica

More Information

More Information
Manufacturer	Bussmann
Barcode	9347729002078
