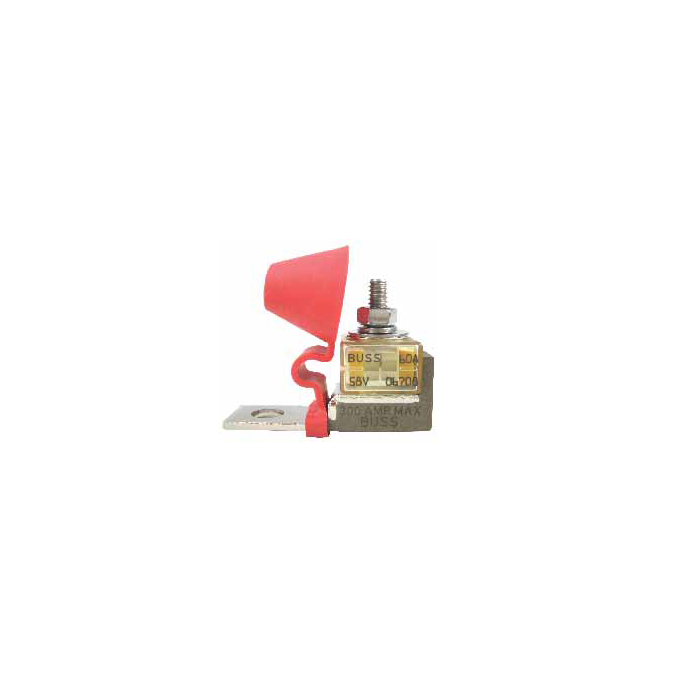

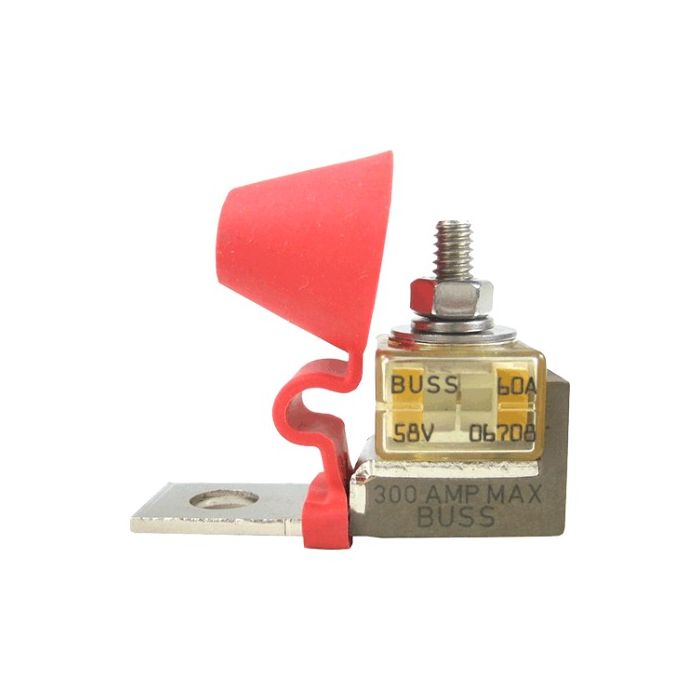

Bussmann CFBAR1M8SPRK 1 Pole M8 Stud Red Cover Kit 300A
Special Price
$31.15
Regular Price
$31.79
In stock
SKU
CFBAR1M8SPRK
Bussmann CFBAR1M8SPRK 1 Pole M8 Stud Red Cover Kit 300A is available to buy in increments of 1
Bussmann CFBAR1M8SPRK 1 Pole M8 Stud Red Cover Kit 300A
Bussmann CFBAR1M8SPRK 1 Pole M8 Stud Red Cover Kit 300A
Rating: 300A max per CFBAR
Voltage: 58VDC
Body: Thermoplastic PPS UL94-V0
Busbar: Nickel plated copper
Fuse Bar Stud: Stainless steel 1/4" -20 or M8.
Kit Contents: Includes S/S nuts, washers and cover.
Mounting: Mounts on a M10 (3/8") battery post. Optional M12 (1/2") version.
Notes: The updated ‘SP’ version of the battery fuse bar does not require a special isolating nut so regular nuts and washers can be fitted to the stud(s). Fuses not included.
Bussmann CFBAR Battery Mounted Fuse Bar 1 Pole (Red cover) – MRBF BAR 300A SINGLE POLE 3/8" MOUNT M8 STUD RED COVER KIT
Features
- Extensive amperage range from 30A to 300A
- Clear element window gives visual indication of a blown fuse
- Colour coded for easy amperage identification
- Suited to main and auxiliary circuit protection such as alternator outputs, starter motor inputs, and accessory circuits
- Weatherproof and functional after 500 hours of salt spray and salt fog testing
Specifications
| Part Number | CFBAR1M8SPRK |
|---|---|
| Description | MRBF BAR 300A SINGLE POLE 3/8" MOUNT M8 STUD RED COVER KIT |
| Voltage | 58VDC |
| Interrupt Rating (I.R.) | 2kA at 58 VDC, 5kA at 32 VDC, 10kA at 14 VDC |
| Amperage Range | 30A to 300A |
| Characteristic | Slow Acting |
| Housing | UL-rated 94V0 thermoplastic |
| Body | Ceramic |
| Ring Terminals | Tin plated |
| Holders | Battery Fuse Bar |
| Mounting | 1/4"-20 or M8 studs |
| Mounting Terminal Size | M8 max |
| Approvals | ISO8820-6 |
| Ignition Protection | SAE J1171 |
| IP Rating | IP66 |
| Environmental | Functional after 500 hours salt spray and salt fog test |
| Manufacturer | Bussmann |
|---|
