Bussmann CFBAR2M8SPBK 300A 2 Pole M8 STUD Battery Mounted Marine Rated Battery Fuse Bar Double Pole Kit Black
Special Price
$54.44
Regular Price
$55.55
In stock
SKU
CFBAR2M8SPBK
Bussmann CFBAR2M8SPBK 300A 2 Pole M8 STUD Battery Mounted Marine Rated Battery Fuse Bar Double Pole Kit Black is available to buy in increments of 1

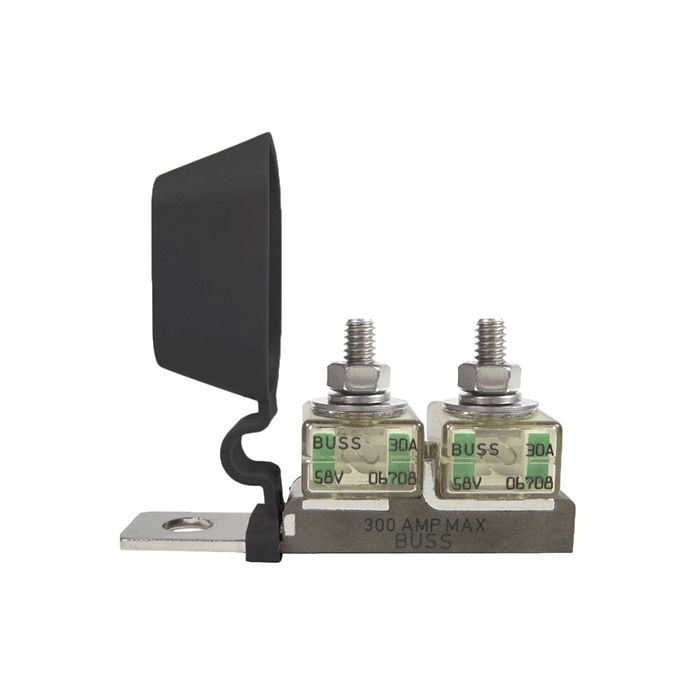

Bussmann CFBAR2M8SPBK 300A 2 Pole M8 STUD Battery Mounted Marine Rated Battery Fuse Bar Double Pole Kit
Bussmann CFBAR2M8SPBK 300A 2 Pole M8 STUD Battery Mounted Marine Rated Battery Fuse Bar Double Pole Kit
Includes Bar, Stainless Steel Nut, Stainless Steel Washers, and Red Cover.
Rating: 300A max per CFBAR
Voltage: 58VDC
Body: Thermoplastic PPS UL94-V0
Busbar: Nickel plated copper
Stud: Stainless steel 1/4" -20 (optional M8 stud)
Mounting: Mounts on a t (optional 1/2" version). 3/8" battery pos
Notes: The ‘SP’ version of the battery fuse bar does not require a special isolating
nut so regular nuts and washers can be the . fitted to stud(s) Fuse not included.
Bussmann CFBAR2 Battery Mounted Fuse Bar 2 Pole Isolated – MRBF BAR 300A DOUBLE POLE 3/8" MOUNT M8 STUD BLACK COVER KIT
Features
- Extensive amperage range from 30A to 300A
- Clear element window gives visual indication of a blown fuse
- Colour coded for easy amperage identification
- Suited to main and auxiliary circuit protection such as alternator outputs, starter motor inputs, and accessory circuits
- Weatherproof and functional after 500 hours of salt spray and salt fog testing
Specifications
| Part Number | CFBAR2M8SPBK |
|---|---|
| Description | MRBF BAR 300A DOUBLE POLE 3/8" MOUNT M8 STUD BLACK COVER KIT |
| Voltage | 58VDC |
| Interrupt Rating (I.R.) | 2kA at 58 VDC, 5kA at 32 VDC, 10kA at 14 VDC |
| Amperage Range | 30A to 300A |
| Characteristic | Slow Acting |
| Housing | UL-rated 94V0 thermoplastic |
| Body | Ceramic |
| Ring Terminals | Tin plated |
| Holders | Battery Fuse Bar |
| Mounting | 1/4"-20 or M8 studs |
| Mounting Terminal Size | M8 max |
| Approvals | ISO8820-6 |
| Ignition Protection | SAE J1171 |
| IP Rating | IP66 |
| Environmental | Functional after 500 hours salt spray and salt fog test |
| Manufacturer | Bussmann |
|---|---|
| Barcode | 9347729002269 |
