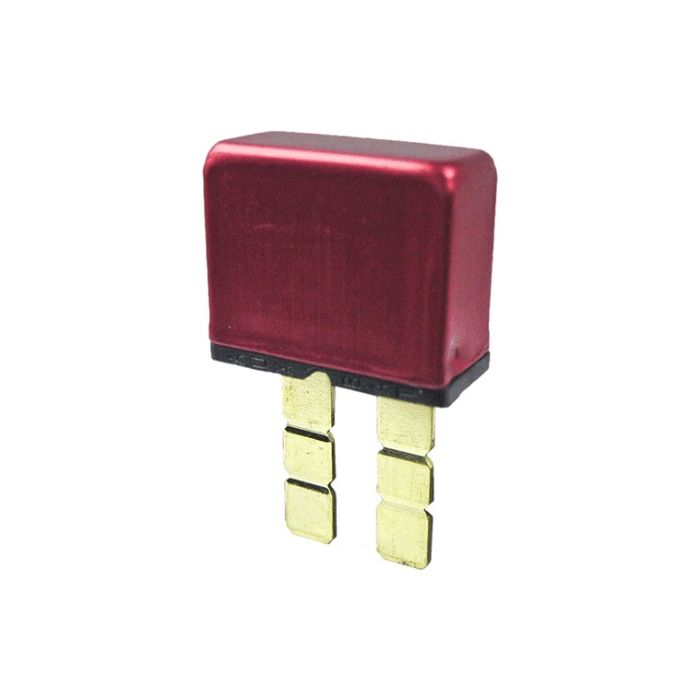

Bussmann UCB-10 10A Circuit Breaker Auto Blade (Snap Off)
Special Price
$10.78
Regular Price
$11.00
In stock
SKU
UCB-10
Bussmann UCB-10 10A Circuit Breaker Auto Blade (Snap Off) is available to buy in increments of 1
10A Circuit Breaker Auto Blade (Snap Off)
10A Circuit Breaker Auto Blade (Snap Off)
I.R.: TBA
Voltage: 12VDC
Reset Mechanism: Type I, Automatic Reset
Termination: Autofuse footprint.
Pack Size: 1, 10, 100
Features:
• Use in place of the ATO and ATC type fuses.
• Blades can be snapped off to fit three different lengths.
UCB (Universal Circuit Breaker) feature "snap-off" universal
blades that can easily be sized to fit applications where fuse
block spacing is tight, or the fuse terminal is recessed.
Bussmann UCB Blade Circuit Breakers – AUTO BLADE CIRCUIT BREAKER 10A 12VDC TYPE I
Features
- Ignition protected
- Metal cover aids heat dissipation
- Manual reset button available in black (-1) or white (-2)
- UCB snap-off universal blades fit tight fuse block spacing or recessed terminals
- UCB colour-coded covers match amperage ratings
Specifications
| Part Number | UCB-10 |
|---|---|
| Description | AUTO BLADE CIRCUIT BREAKER 10A 12VDC TYPE I |
| Voltage | 12VDC, 12/24VDC, 24VDC |
| Ampere Rating | 8A to 50A |
| Interrupt Rating (I.R.) | 150A at 14VDC (8A to 10A), 225A at 14VDC (15A), 300A at 14VDC (20A), 450A at 14VDC (25A to 30A), 600A at 14VDC (35A to 40A), 750A at 14VDC (50A) |
| Operating Temp | -40°C to 85°C |
| Storage Temp | -40°C to 125°C |
| Termination | Blade (auto blade terminals also available); UCB: auto fuse footprint, brass |
| Reset Mechanism | Manual (with reset button) or Automatic (no button). UCB: Type I, Automatic Reset |
| Cover | Metal |
| Blade Width | 12.7mm |
| Approvals | SAE J553, J1171 (UCB: J553) |
| Manufacturer | Bussmann |
|---|
