Bussmann CFH-ASS 8 Position Sealed Power Distribution Module
Special Price
$17.25
Regular Price
$17.60
In stock
SKU
CFH-ASS
Bussmann CFH-ASS 8 Position Sealed Power Distribution Module is available to buy in increments of 1

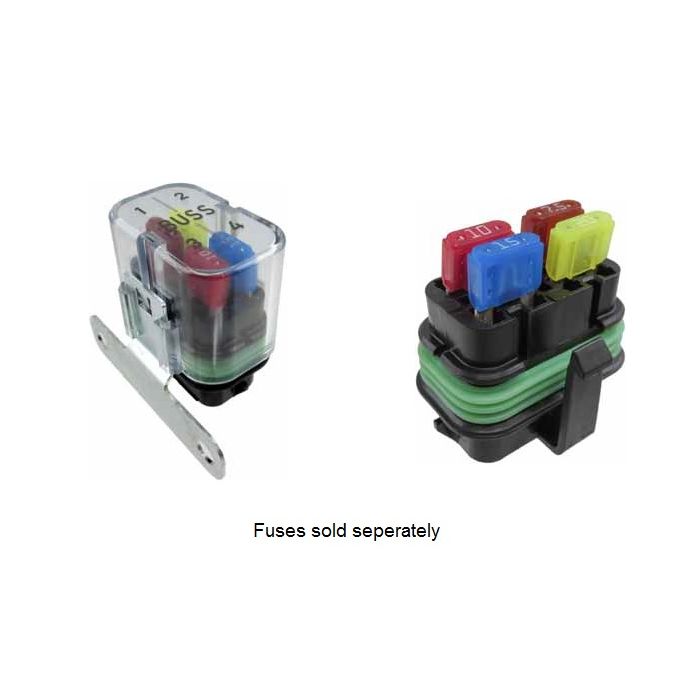

Bussmann CFH-ASS 8 Position Sealed Power Distribution Module
Bussmann CFH-ASS 8 Position Sealed Power Distribution Module
This module can be fitted with a mixture of 280 style components such as Mini fuses, mini circuit breakers, diodes, resistors & relays. It’s compact size means it can be installed anywhere thereby eliminating excessive wiring in harnesses. It is available with a long or short cover and meets IP66 for ingress protection when installed with correct seals.
Required components not included and sold seperatly are as follows:
Delphi Terminals
Delphi Cable Seals
Mini blade fuses or circuit breakers
For Complete kit including terminals and seals see SKU: FH08
Bussmann CFH Power Distribution Module with Side Bracket – CFH CONNECTOR FUSE HOLDER WITH SHORT COVER, SIDE MOUNT
Features
- Accepts a mix of 280-style mini fuses, mini circuit breakers, diodes, resistors and ISO 280 relays
- Compact size allows installation in many locations and reduces harness wiring
- Tall cover is required for relays and circuit breakers; short cover takes short components only
- IP66 rating when properly installed with cover, seals and plugs
- Optional side, end and pin brackets for mounting
Specifications
| Part Number | CFH-ASS |
|---|---|
| Description | CFH CONNECTOR FUSE HOLDER WITH SHORT COVER, SIDE MOUNT |
| Voltage | 32V |
| Temperature | -40°C to +125°C |
| Rating | 120A max (100A when following guidelines) |
| Current Limits | Positions 1 & 2 combined 60A for fuses / 30A for circuit breakers; same for positions 3 & 4 |
| Micro Relay Limit | 50A max when fitted with a micro relay |
| Terminal Capacity | 8 terminals, 2 x 4 layout |
| Terminals | Delphi Metri-Pack 280 Female Sealed, Tanged |
| Cover | 94V0 clear polycarbonate, short or tall |
| Base | 94V0 thermoplastic, black standard |
| Bracket Options | Side B028-7013, End B028-7015, Pin B028-7016 |
| Ingress Protection | IP66 (when properly installed with cover, cable seals and cavity plugs) |
| Cable Seals | Silicone, UL94-V0 |
| Cavity Plugs | Silicone, UL94-V0 |
| Mini Fuse Rating (32VDC) | 3A to 30A |
| Circuit Breaker Rating | 5A to 30A (automatic, modified, and manual reset types) |
| Manufacturer | Bussmann |
|---|
