Rating: 800A
Voltage: 125VAC, 80VDC
Studs: 5/16" - 24
Hardware: Includes nylon insert lock nuts.
Pack Size: 1
Base: Themoplastic
Notes: Countersunk mounting holes to suit No.10 flat head screws. Fuses not included. Suits Fuse: ANL, ANN, FBT and 0581 series.

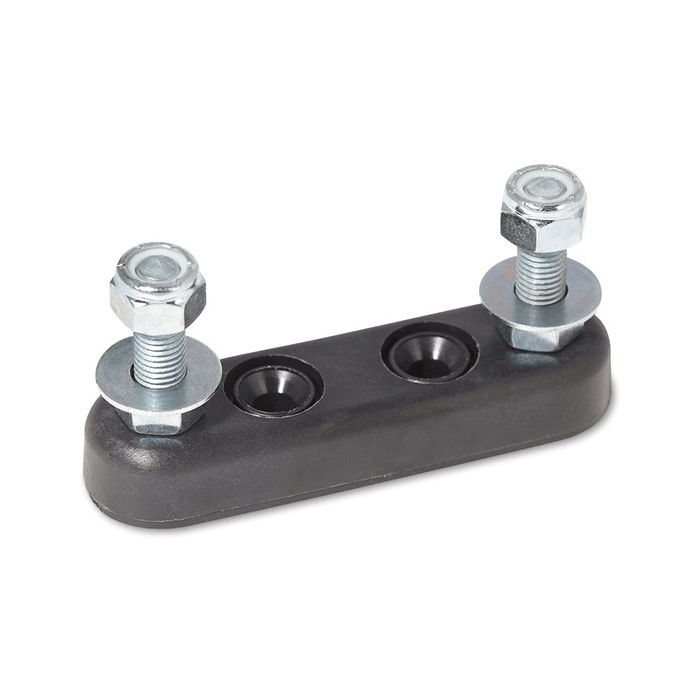

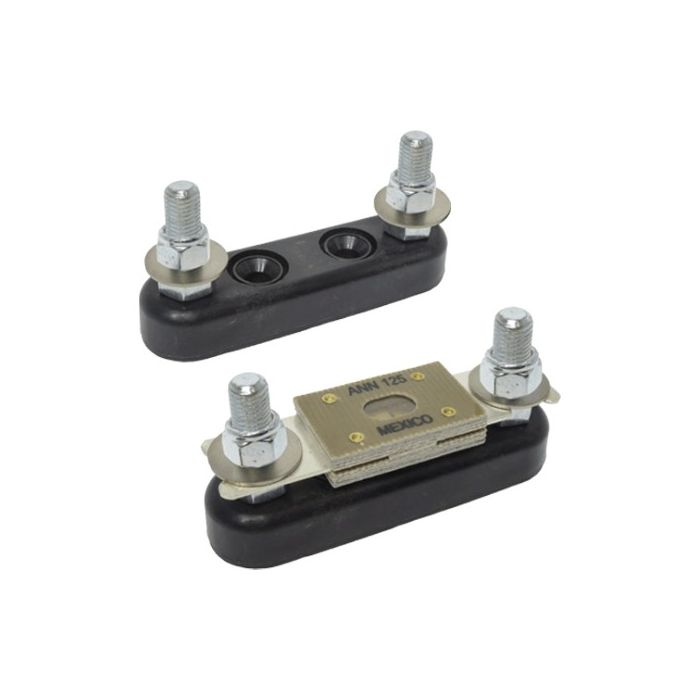

Bussmann 4164 Fuse Block for Forklift & Lift Truck fuses – FUSE BLOCK 800A 125VAC 80VDC FOR FBT/ANL/ANN FUSE

Features

Can be used as a fuse block or terminal block
Clear cover included
Available with free running nuts or nylon insert locknuts
Flammability rating UL 94-V0
Countersunk mounting holes for No.10 flat head screws

Specifications

Part Number	FBTB-LN
Description	FUSE BLOCK 800A 125VAC 80VDC FOR FBT/ANL/ANN FUSE
Part Number	4164-FR
Rating	800A
Studs	5/16"-24 (M8), Torque 13.6 Nm
Note	Fuses not included
Cover	Clear cover included (lift truck fuse block, 80V)
Hardware	Includes nuts & washers
Operating Temp.	-40 to +125°C
Voltage (EV Bolted Modular Block)	1000 VAC / VDC
Rating (EV Bolted Modular Block)	500A
Flammability Rating	UL 94-V0
Stud Torque (EV Bolted Modular Block)	M8, 12 Nm
Hardware (EV Bolted Modular Block)	Includes hex nut & washer
Mounting	Countersunk mounting holes to suit No.10 flat head screws

More Information

More Information
Manufacturer	Bussmann
Barcode	9347729002542
