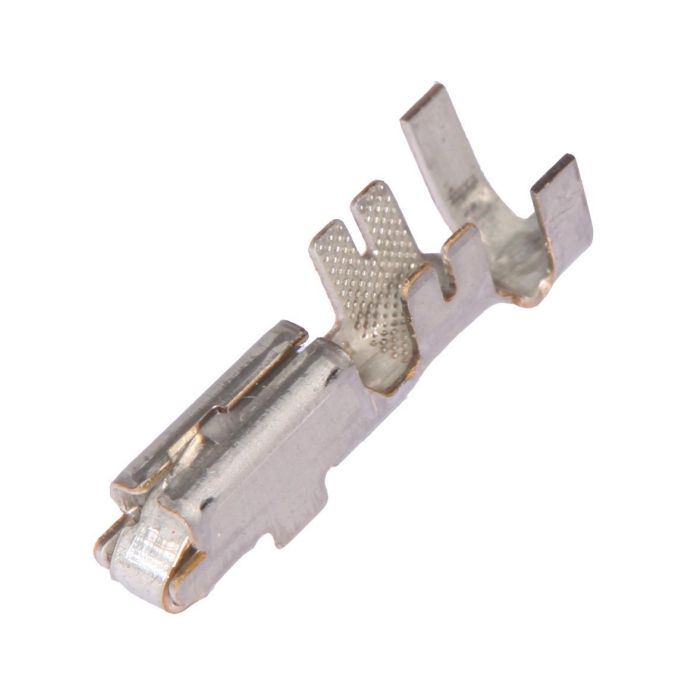

Delphi 12110846 Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2 (10 pieces)
Special Price
$6.47
Regular Price
$6.60
In stock
SKU
12110846
Delphi 12110846 Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2 (10 pieces) is available to buy in increments of 1
Delphi 12110846 Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2
Delphi 12110846 Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2
| Description: | Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2 |
| Product Type: | Terminal |
| Status: |  Active |
| Blade size [mm]: | 2.8 |
| Terminal family: | Metri-Pack |
| Series: | 280 |
| Gender: | Female |
| Sealed: | Sealed |
| Material: | CuSn3Zn9 |
| Plating: | Tin |
| Minimum Cable Core Cross Section [mm2]: | 0.35 |
| Maximum Cable Core Cross Section [mm2]: | 0.50 |
| Minimum Cable Diameter [mm]: | 1.47 |
| Maximum Cable Diameter [mm]: | 2.19 |
| Current range [A]: | 30 |
| Temperature range [℃]: | -40 to 125 |
| Typical cable seal: | 15324985 |
| Weight [g]: | 0.65 |
| ELV compliant: |  Yes |
| RoHs compliant: | Yes |
Delphi Metri-Pack 280 Female Sealed Tangless Terminals – TERMINAL 280 FEMALE SEALED TANGLESS 0.35 - 0.5MM
Features
- Female sealed terminals available in tanged and tangless styles
- Silicone cavity plugs and cable seals
- Crimp tool has parallel jaw design that eliminates terminal rocking
- Crimps Aptiv Delphi Metri-Pack 280 and Tyco AMP MCP 2.8 terminals
- Suits PDM products including BPDMA104, CFH, PDM3100, PDM2100, 15300 & 15400, and XTCK4
Specifications
| Part Number | 12110846 |
|---|---|
| Description | TERMINAL 280 FEMALE SEALED TANGLESS 0.35 - 0.5MM |
| Cavity Plugs Material | Silicone |
| Cable Seals Material | Silicone |
| Cavity Plug Colour | Green |
| Terminal Material | Tin Brass / Tin plated |
| Terminal Wire Range (mm²) | 0.35 - 5.0 |
| Terminal Wire Range (AWG) | #22 - #10 |
| Crimp Tool Terminal Gauge Range | #22 - #12 AWG (0.35mm² to 3mm²) |
| Manufacturer | Delphi |
|---|
