Rating: 75A continuous long duration / 100A max.
Voltage: 700VAC / 700VDC
Body: Black moulded. Includes screws & split washers.
Mounting: Symmetrical 35mm DIN Rail or Screw Mount
Accessories: Barrier shields, extended terminals.
Suit Fuse: Electric vehicle fuses 621-FF & 631-FF Series.
Pack Size: 1
Notes: Two barrier shields required per single base. Not touch proof. Fuse is not included.

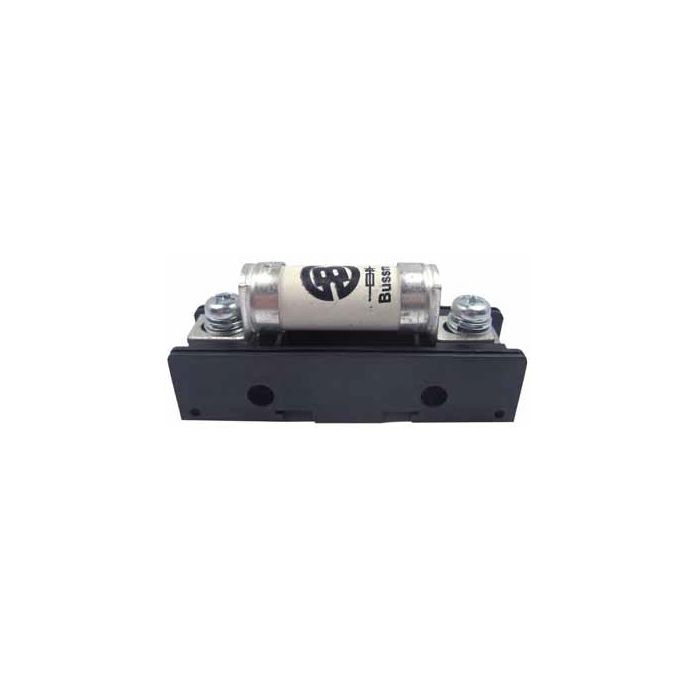

Fuse Blocks for BS88 UR Fuses 700V (Hinode HT6017) – FUSE BLOCK 700VAC/VDC 75A FOR ET/FE FUSE

Features

Accepts symmetrical 35mm DIN rail or screw mounting
Barrier shields and extended terminals available as accessories
Designed for BS88 semiconductor fuses
Two barrier shields required per single base

Specifications

Part Number	HT6017
Description	FUSE BLOCK 700VAC/VDC 75A FOR ET/FE FUSE
Rating	75A
Voltage	400VAC/DC (HP40); 700VAC/DC (HP60)
Body	Black moulded
Mounting	Symmetrical 35mm DIN Rail / Screw Mount
Termination	M6 screw
Accessories	Barrier shields, extended terminals
Suit Fuse	BS88 Semiconductor fuses LET series (HP40); BS88 Semiconductor fuses ET & FE series (HP60)
Note	Fuse not included; two barrier shields required per single base

More Information

More Information
Manufacturer	Hinode
