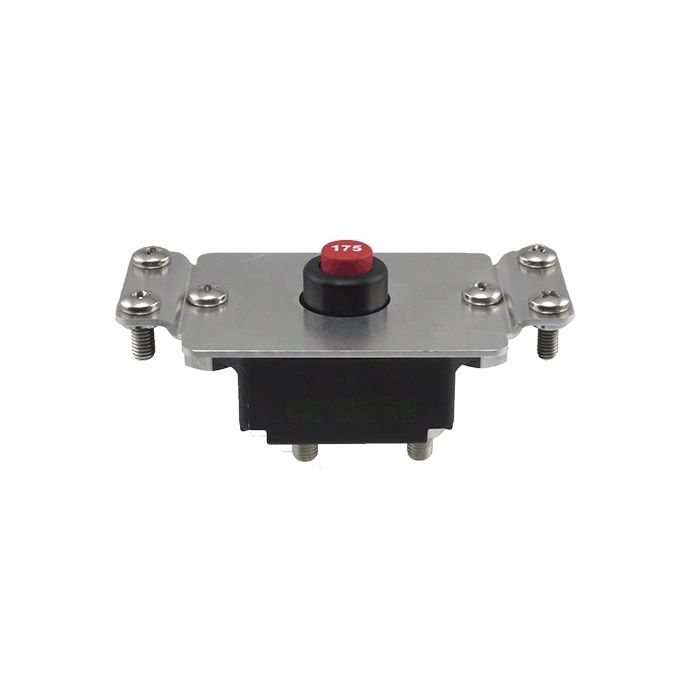

Like Klixon 7855-6 19M-P21-B-175 Circuit Breaker Stud Manual 175A 30VDC

Name: Like Klixon 7855-6 19M-P21-B-175 Circuit Breaker Stud Manual 175A 30VDC
Brand: Mechanical Products
SKU: 19M-P21-B-175
Price: 178.95 AUD
Availability: InStock

Series 19 circuit breakers offer superior Ingress Protection, rated to IP67 & IP69K making them suitable for harsh environments. Small circuit breaker able to handle high currents. Supplied with wide mounting bracket and fixing screws. Made in USA.

Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.

Mechanical Products 19M-P21-B Circuit Breaker like Klixon 7855-6 – CIRCUIT BREAKER 175A 30VDC PANEL MOUNT STAINLESS STEEL PLATE 1/4" STUD MANUAL

Features

Wide range of ratings from 25A to 200A
Superior ingress protection, rated IP67 & IP69K
Designed for harsh applications to 30VDC
Optional LED TripID version for open circuits
Wide bracket version available in natural or black

Specifications

Part Number	19M-P21-B-175
Description	CIRCUIT BREAKER 175A 30VDC PANEL MOUNT STAINLESS STEEL PLATE 1/4" STUD MANUAL
Voltage	30VDC
Ampere Rating	25A to 200A (175A and 200A standard; 25A to 150A made to order)
I.R.	2.5kA at 30VDC (175A-200A); 2.5kA at 14VDC and 1.5kA at 28VDC (25A-150A)
Housing	UL 94-V0 rated black thermoplastic
Mounting Plate	Natural finish standard; black powder coat optional
Mounting Screws	4 x #10-32 x 1/2" stainless steel Phillips head (included)
Termination	1/4"-28 (12.5mm long) stainless steel studs; stainless steel sems nuts included
Operating Temp	-40°C to 85°C
IP Rating	IP67 & IP69K
Approvals	SAE J1625, ABYC E-11, UL 1077, SAE J1171, MIL-STD-202 (101, 106, 213), MIL-STD-204
