Like Klixon 7855-7 Circuit Breaker 19A-P21-N-175 175A 30VDC
Special Price
$178.95
Regular Price
$182.60
In stock
SKU
19A-P21-N-175
Like Klixon 7855-7 Circuit Breaker 19A-P21-N-175 175A 30VDC is available to buy in increments of 1
Like Klixon 7855-7 Circuit Breaker 19A-P21-N-175 175A 30VDC
Like Klixon 7855-7 Circuit Breaker 19A-P21-N-175 175A 30VDC

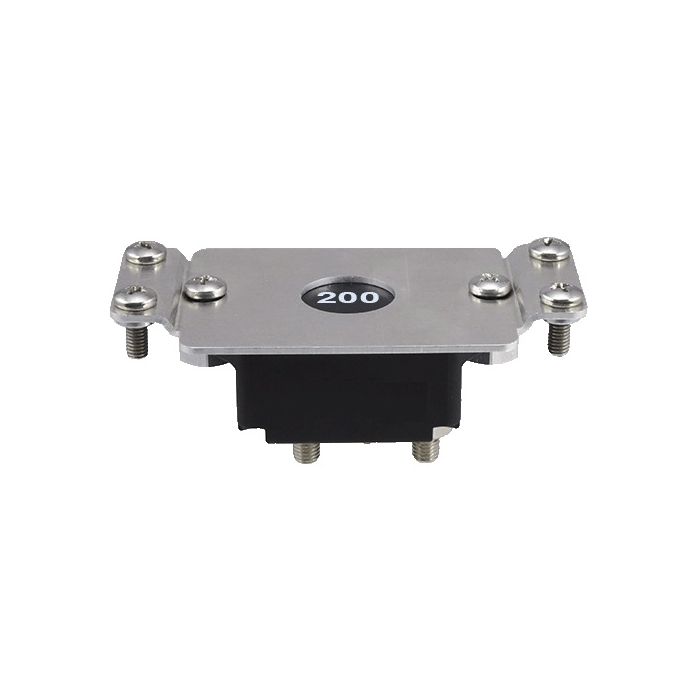

Series 19 circuit breakers offer superior Ingress Protection, rated to IP67 & IP69K making them suitable for harsh environments. Small circuit breaker able to handle high currents. Supplied with wide mounting bracket and fixing screws. Made in USA.
Automatic reset circuit breakers will open the circuit on overload and close the circuit automatically when the operating current returns to normal. However, they are not designed for long term cycling. It is recommended they are installed downstream of a main fuse, manual reset circuit breaker or momentary switch.
Mechanical Products 19A-P21-N Circuit Breaker like Klixon 7855-7 – CIRCUIT BREAKER 175A 30VDC PANEL MOUNT STAINLESS STEEL PLATE 1/4" STUD AUTO RESET
Features
- Wide range of ratings from 25A to 200A
- Superior ingress protection, rated IP67 & IP69K
- Designed for harsh applications to 30VDC
- Optional LED TripID version for open circuits
- Wide bracket version available in natural or black
Specifications
| Part Number | 19A-P21-N-175 |
|---|---|
| Description | CIRCUIT BREAKER 175A 30VDC PANEL MOUNT STAINLESS STEEL PLATE 1/4" STUD AUTO RESET |
| Voltage | 30VDC |
| Ampere Rating | 25A to 200A (175A and 200A standard; 25A to 150A made to order) |
| I.R. | 2.5kA at 30VDC (175A-200A); 2.5kA at 14VDC and 1.5kA at 28VDC (25A-150A) |
| Housing | UL 94-V0 rated black thermoplastic |
| Mounting Plate | Natural finish standard; black powder coat optional |
| Mounting Screws | 4 x #10-32 x 1/2" stainless steel Phillips head (included) |
| Termination | 1/4"-28 (12.5mm long) stainless steel studs; stainless steel sems nuts included |
| Operating Temp | -40°C to 85°C |
| IP Rating | IP67 & IP69K |
| Approvals | SAE J1625, ABYC E-11, UL 1077, SAE J1171, MIL-STD-202 (101, 106, 213), MIL-STD-204 |
| Manufacturer | Mechanical Products |
|---|
