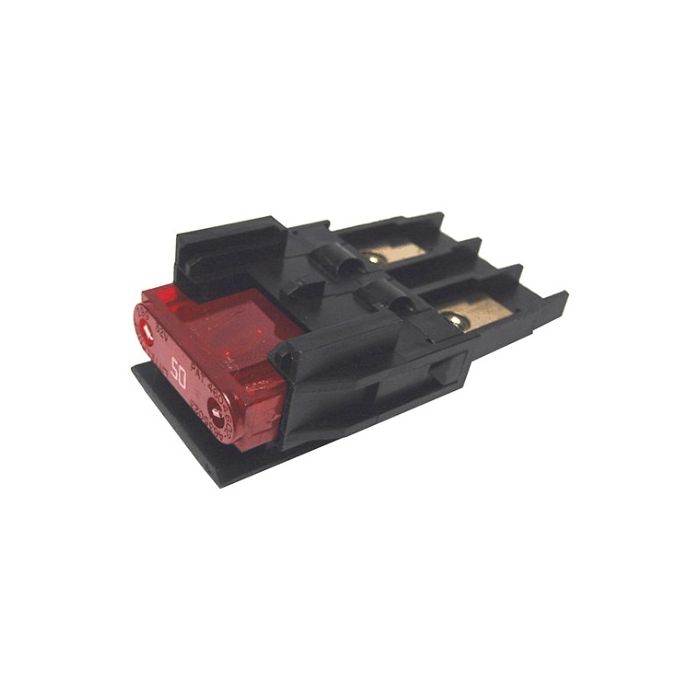

Littelfuse 152001 Maxi Fuse Holder In Line Kit 60A 2.5 - 6mm2

Name: Littelfuse 152001 Maxi Fuse Holder In Line Kit 60A 2.5 - 6mm2
Brand: Littelfuse
SKU: 152001KIT1
Price: 31.7 AUD
Availability: InStock

Be the first to review this product

Special Price $31.70 Regular Price $34.20

In stock

SKU

152001KIT1

Littelfuse 152001 Maxi Fuse Holder In Line Kit 60A 2.5 - 6mm2 is available to buy in increments of 1

Littelfuse 152001 Maxi Fuse Holder In Line Kit 60A 2.5 - 6mm2

Details

Littelfuse 152001KIT1 Maxi Fuse Holder In Line Kit 60A 2.5 - 6mm2

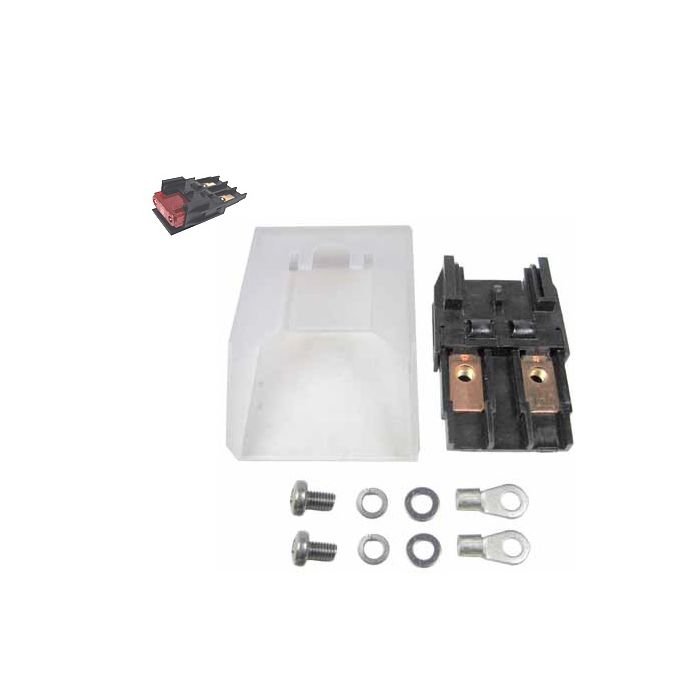

Fuse holder kit includes fuse holder body, cover, screws & 2.5 - 6mm² terminals

Rating: 60A
Voltage: 32VDC
Terminals: Copper alloy
Body: Black thermoplastic (UL 94HB)
Cover: Translucent thermoplastic

Features: Only 2 fuse blocks may be ganged together with a maximum fuse rating of 50A per block.

Notes: This product will only accept original Littelfuse Maxi Blade fuses (299 / 999 series). Fuse is not included. *It is recommended that cross linked polyethelene (GLX) insulated wire be used.

Littelfuse 152001 Fuse Holder for MAXI/MAX fuses – INLINE FUSE HOLDER KIT INCLUDES COVER, SCREWS + TERMINAL 2.5-6MM2 FOR MAXI BLADE FUSE

Features

Protective cover permits use in harsh under hood environments
Clear cover allows LED Maxi fuses to be clearly seen
Mounting hole permits easy bulkhead installation
Permits 2 or more holders to be mounted together
Only 2 fuse blocks may be ganged together, max 50A per block

Specifications

Part Number	152001KIT1
Description	INLINE FUSE HOLDER KIT INCLUDES COVER, SCREWS + TERMINAL 2.5-6MM2 FOR MAXI BLADE FUSE
Rating	60A 32VDC
Terminals	Copper alloy
Cover	Translucent thermoplastic
Body	Thermoplastic (UL 94 HB)
Ignition Protection	UL 94 V-2
Wire	2 x 127mm leads, 13mm² (6 AWG), black
Ring Tongue Terminals	2.5 - 6mm² (12-10 AWG); 5 - 10mm² (10-8 AWG)
Mounting Hole	M5 / 6.7mm diameter
Screw	M5 x 8
IP Rating	IP67
