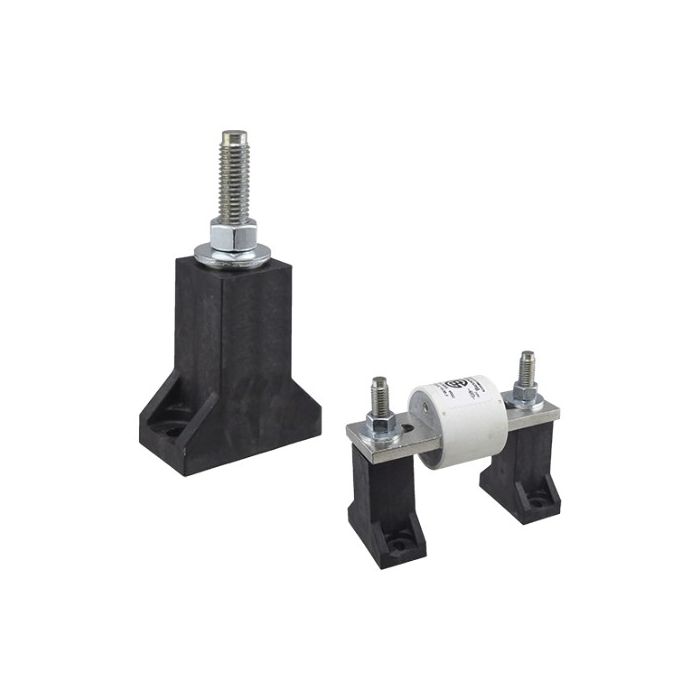

Littelfuse LSCR103 Fuse Blocks for Bolt Down Fuses
Special Price
$172.48
Regular Price
$176.00
In stock
SKU
LSCR103
Littelfuse LSCR103 Fuse Blocks for Bolt Down Fuses is available to buy in increments of 1
Littelfuse LSCR103 Fuse Blocks for Bolt Down Fuses
Littelfuse LSCR103 Fuse Blocks for Bolt Down Fuses
Features:
- Modular design reduces inventory requirements.
- Supplied with nut and belleville washer.
- 200kA short-circuit withstand rating.
- 1000VAC / 1000 VDC approved.
Amp rated: 1200A
Insulator Material: Thermoplastic
Terminal Material: Steel, Zinc Plated.
Ordering Information: Each fuse requires 2 blocks. The LSC series are sold as single blocks (order 2 blocks per fuse).
Littelfuse LSCR103 Fuse Blocks for Bolt-Down fuses – FUSE BLOCK 1000VAC/1000VDC 1200A 1/2"-13 (1PC)
Features
- Modular design reduces inventory requirements
- Supplied with nut and belleville washer
- 200kA short-circuit withstand rating
- 1000VAC / VDC approved
Specifications
| Part Number | LSCR103 |
|---|---|
| Description | FUSE BLOCK 1000VAC/1000VDC 1200A 1/2"-13 (1PC) |
| Insulator Material | Thermoplastic |
| Insulator Temperature | 125°C (max) |
| Terminal Material | Steel, Zinc Plated |
| Short-Circuit Withstand Rating | 200kA |
| Voltage Rating | 1000VAC/DC |
| Terminal Stud Size | 1/4"-20 (6.35mm) / 3/8"-16 (9.52mm) / 1/2"-13 (12.7mm) |
| Suggested Torque | 7.6-9.3 Nm / 23.4-28.6 Nm / 30.5-37.3 Nm |
| Ordering | Order 2 blocks per fuse |
| Included | Nut and belleville washer |
| Note | Fuse not included |
| Manufacturer | Littelfuse |
|---|
