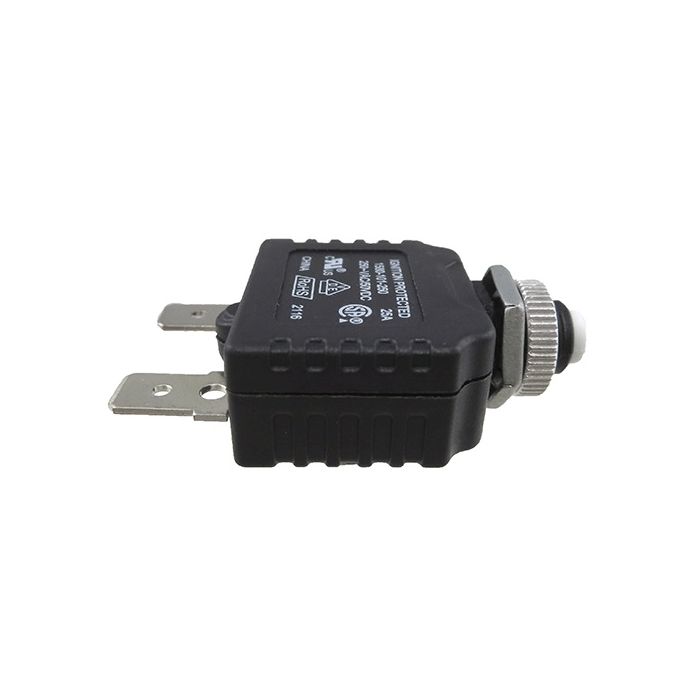

Mechanical Products 1580-101-250 Series 15 Circuit Breakers MAN 25A 250VAC/50VDC 3/8"-27 THREAD (1580-101)
Special Price
$9.16
Regular Price
$9.35
In stock
SKU
1580-101-250
Mechanical Products 1580-101-250 Series 15 Circuit Breakers MAN 25A 250VAC/50VDC 3/8"-27 THREAD (1580-101) is available to buy in increments of 1
Mechanical Products 1580-101-250 Series 15 Circuit Breakers MAN 25A 250VAC/50VDC 3/8"-27 THREAD (1580-101)
Mechanical Products 1580-101-250 Series 15 Circuit Breakers MAN 25A 250VAC/50VDC 3/8"-27 THREAD (1580-101)
This compact circuit breaker can be panel or dash mounted making it suitable for a variety of applications ranging from medical equipment to household appliances. It is also Ignition Protected to UL 1500 to provide safe fault handling in flammable areas.
Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.
Voltage: 250VAC / 50VDC.
I.R.: 1k 250 / 50VDC, 3kA at 32VDC. A at VAC
Reset Mechanism: Type III, Manual Reset.
Button: White button with black ampere rating stamp.
Mounting: Panel mount - includes Pal nut & Knurl nut.
Quick Connect Terminals: Male 1/4" (6.35mm).
Screw Terminals: 3A-20A (#6-32), 25A-40A (#8- 32).
Screw terminals include screws & lock washers.
Features: Ignition Protected UL 1500.
Options: Weatherproof boots, extended ampere ratings
(500mA-2.5A & 45A-70A), snap mounting or various terminal
and hardware options.
Pack Size: Stock lines 1pc
Mechanical Products Series 15 Circuit Breakers (1580-101) – CIRCUIT BREAKER 25A 250VAC/50VDC PANEL MOUNT MANUAL RESET 3/8"-27 THREAD, QUICK CONNECT
Features
- Miniature size, suitable for panel mount or dash mount
- Wide range of common amperages (3A-40A) for both AC and DC voltages
- Custom versions available with alternative termination, mounting, button and reset options
- Build-your-own 4, 6 or 8 way switch and circuit breaker panels
Specifications
| Part Number | 1580-101-250 |
|---|---|
| Description | CIRCUIT BREAKER 25A 250VAC/50VDC PANEL MOUNT MANUAL RESET 3/8"-27 THREAD, QUICK CONNECT |
| Voltage | 250VAC / 50VDC |
| Interrupt Rating (I.R.) | 1kA at 250VAC / 50VDC, 3kA at 32VDC, OL1 rated |
| Ampere Range | 3A-40A |
| Reset Mechanism | Manual Reset |
| Button | White button with black ampere rating stamp |
| Mounting | Panel mount, includes Pal nut & Knurl nut; dash mount; snap mount upon request |
| Terminals (Quick Connect) | 1/4" (0.250 x 0.032") straight terminals |
| Terminals (Screw) | 3A-20A (#6-32), 25A-40A (#8-32); includes screws & lock washers |
| Bushing | 3/8"-27 or 7/16"-28 |
| Features | Ignition Protected, UL |
| IP Rating | IP67 |
| Options | Alternative ampere ratings (500mA-2.5A & 45A-70A) |
| Hardware Materials | Aluminum (small knurl nut, pal nut, name plate); Black Nylon (large knurl nut) |
| Manufacturer | Mechanical Products |
|---|
