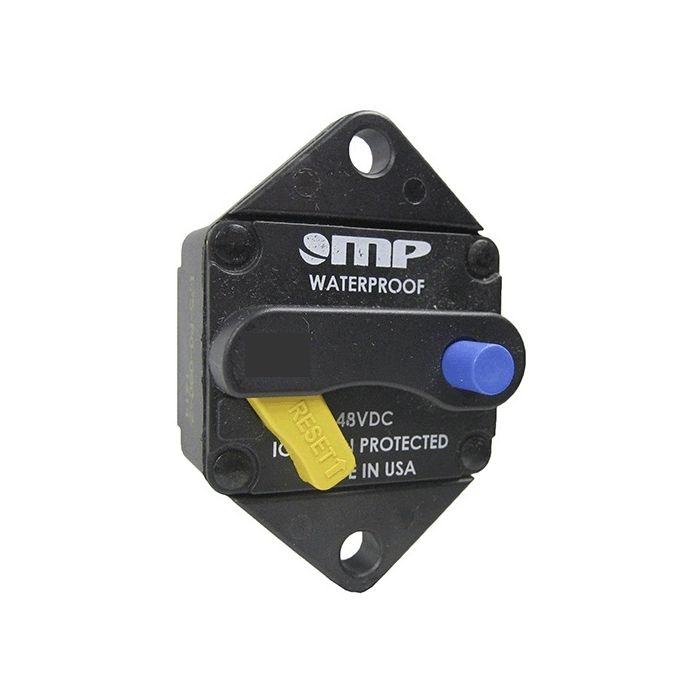

Mechanical Products 175-P0-050 50A Circuit Breaker Panel Mount High Ampere
Special Price
$53.90
Regular Price
$55.00
In stock
SKU
175-P0-050
Mechanical Products 175-P0-050 50A Circuit Breaker Panel Mount High Ampere is available to buy in increments of 1
Mechanical Products 175-P0-050 50A Circuit Breaker Panel Mount High Ampere
Mechanical Products 175-P0-050 50A Circuit Breaker Panel Mount High Ampere
I.R. Ratings:
Type T1 (25A-150A): 3kA at 30VDC
Type T1 (175A-200A): 1.5kA at 30VDC
Type TIII (25A-150A): 2.5 at 14 , 1.5 at 48 kA VDC kA VDC
Type TIII (175A-200A): 2.5kA at 14VDC, 1.5kA at 30VDC
Voltage Ratings:
Type T1: 30VDC
Type TIII (25A-150A): 84 VDC
Type TIII (175A-200A): 30VDC
Pack Size: Stock lines 1pc, indent items 36pcs.
Housing: UL 94-V0 rated black thermoplastic.
Termination: Stainless steel studs.
Operating Temp: - °C to 8 °C 40 5
Ingress Protection Rating: I 67 P
Indicator: Bright yellow reset mechanism provides visual indication
of tripped condition on manual breakers . reset (Type TIII)
Features: Ignition Protected.
Stud Insulator Caps: Included.
Terminal Hardware: Stainless steel . Sems nuts
Options: 90 Degree position terminals suit busbar applicati
Mechanical Products Series 17 Circuit Breakers (175-P0) – CIRCUIT BREAKER 50A 48VDC PANEL MOUNT 1/4" STUD MANUAL RESET / PUSH TO TRIP
Features
- Ignition protected and weatherproof
- Standard or 90 degree stud orientation
- Robust thermoplastic case
- Corrosion resistant studs and hardware
- Largest amperage range available
Specifications
| Part Number | 175-P0-050 |
|---|---|
| Description | CIRCUIT BREAKER 50A 48VDC PANEL MOUNT 1/4" STUD MANUAL RESET / PUSH TO TRIP |
| Ampere Rating | 20A to 300A (Manual Reset 20A to 250A; Auto Reset 20A to 300A) |
| Interrupt Rating, Type I (Auto Reset) | 20A-150A: 3kA at 30 VDC; 175A-200A: 1.5kA at 30 VDC; 225A-300A: 2.5kA at 14 VDC |
| Interrupt Rating, Type III (Manual Reset) | 20A-150A: 2.5kA at 14 VDC, 1.5kA at 48 VDC; 175A-200A: 2.5kA at 14 VDC, 1.5kA at 30 VDC; 225A-250A: 1.5kA at 14 VDC |
| Voltage Rating, Type I | 20A-200A: 30 VDC; 225A-300A: 14 VDC |
| Voltage Rating, Type III | 20A-150A: 48 VDC; 175A-200A: 30 VDC; 225A-250A: 14 VDC |
| Housing | UL 94-V0 rated black thermoplastic |
| Termination | 1/4" or 3/8" stainless steel studs |
| Terminal Hardware | Stainless steel, Sems nuts included |
| Operating Temperature | -40°C to 85°C |
| Ingress Protection Rating | IP67 |
| Indicator | Bright yellow reset mechanism shows tripped condition on manual reset breakers |
| Options | 90 degree position suits horizontal busbar studs |
| Gasket Accessory | B156-7003-J, black Santoprene |
| Mounting Bracket | PROBRK017, right angle, stainless steel |
| Manufacturer | Mechanical Products |
|---|
