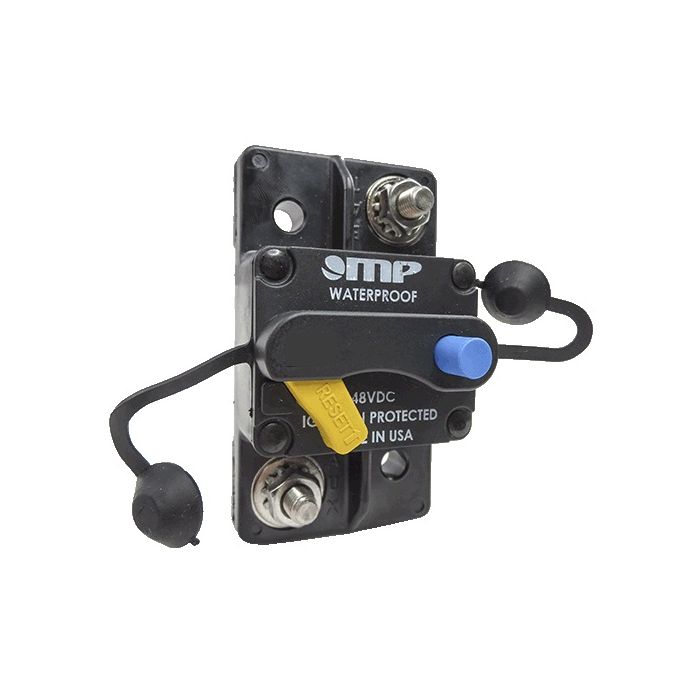

Mechanical Products 175-S0-035 35A Surface Mount High Ampere Circuit Breaker
Special Price
$53.90
Regular Price
$55.00
In stock
SKU
175-S0-035
Mechanical Products 175-S0-035 35A Surface Mount High Ampere Circuit Breaker is available to buy in increments of 1
Mechanical Products 175-S0-035 35A Surface Mount High Ampere Circuit Breaker
Mechanical Products 175-S0-035 35A Surface Mount High Ampere Circuit Breaker
I.R.Ratings:
Type TI (25A-150A): 3kA at 30VDC
Type TI (175A-200A): 1.5kA at 30VDC
Type TIII (25A-150A): 2.5 at 14 , 1.5 at 48 kA VDC kA VDC
Type TIII (175A-200A): 2.5kA at 14VDC, 1.5kA at 30VDC
Voltage Ratings:
Type TI: 30VDC
Type TIII (25A-150A): 84 VDC
Type TIII (175A-200A): 30VDC
Pack Size: Stock lines 1pc, indent items 36pcs.
Housing: UL94 V-0 rated black thermoplastic.
Termination: Stainless steel studs.
Operating Temp: - °C to 8 °C 40 5 .
Ingress Protection Rating: I 67 P
Indicator: Bright yellow reset mechanism provides visual indication
of tripped condition on manual breakers . reset (Type TIII)
Features: Ignition Protected.
Stud Insulator Caps: Included.
Terminal Hardware: Stainless steel . Sems nuts
Options: Side by side terminals also available (see picture below)
Mechanical Products Series 17 Circuit Breakers (175-S0) – CIRCUIT BREAKER 35A 48VDC SURFACE MOUNT 1/4" STUD MANUAL RESET / PUSH TO TRIP
Features
- Ignition protected and weatherproof, with superior moisture seal
- Corrosion resistant studs and hardware
- Robust thermoplastic case
- Accommodates the new TripID accessory
- 1/4" or 3/8" stainless steel stud options
Specifications
| Part Number | 175-S0-035 |
|---|---|
| Description | CIRCUIT BREAKER 35A 48VDC SURFACE MOUNT 1/4" STUD MANUAL RESET / PUSH TO TRIP |
| Ampere Rating | 20A, 25A, 30A, 35A, 40A, 50A, 60A, 70A, 80A, 90A, 100A, 110A, 120A, 135A, 150A, 175A, 200A, 225A, 250A, 275A, 300A |
| Voltage Rating (Type TI) | (20A-200A): 30VDC; (225A-300A): 14VDC |
| Voltage Rating (Type TIII) | (20A-150A): 48VDC; (175A-200A): 30VDC; (225A-250A): 14VDC |
| I.R. Rating (Type TI) | (20A-150A): 3kA at 30VDC; (175A-200A): 1.5kA at 30VDC; (225A-300A): 2.5kA at 14VDC |
| I.R. Rating (Type TIII) | (20A-150A): 2.5kA at 14VDC, 1.5kA at 48VDC; (175A-200A): 2.5kA at 14VDC, 1.5kA at 30VDC; (225A-250A): 1.5kA at 14VDC |
| Housing | UL94 V-0 rated black thermoplastic |
| Termination | Diagonal 1/4" or 3/8" stud options |
| Terminal Hardware | Stainless steel, SEMS nuts included |
| Stud Insulator Caps | Included |
| Operating Temperature | -40°C to 85°C |
| Ingress Protection Rating | IP67 |
| Indicator | Bright yellow reset mechanism provides visual indication of tripped condition on manual breakers (Type TIII) |
| Approvals | UL 1077, SAE J1625, J1171, ABYC E-11, MIL STD-202 |
| Mounting | Surface mount, 2 mounting holes, 6.60 mm diameter |
| Manufacturer | Mechanical Products |
|---|
