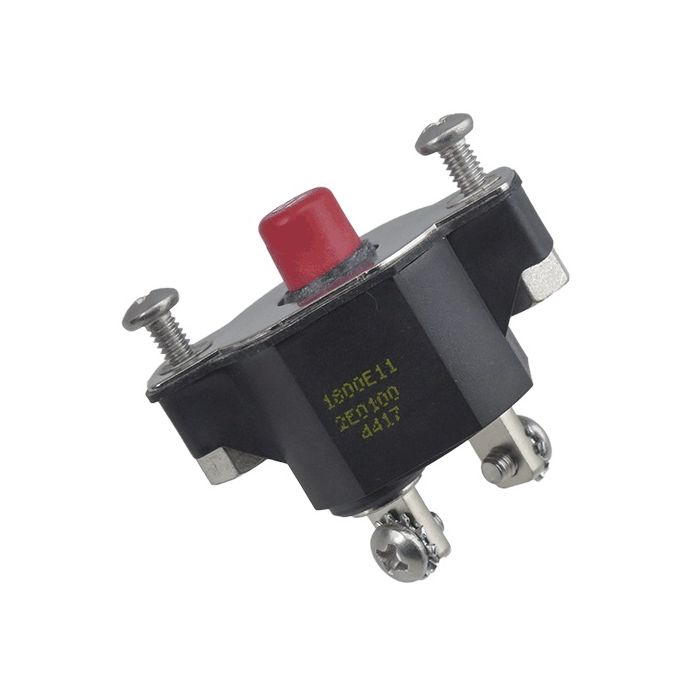

Mechanical Products 1800E112E0100 Series 18 10A Panel Mount Circuit Breaker

I.R. : (1800 series ) 3k at 120VAC / 32VDC (Standard Calibration) A
I 3kA t 120VAC, 5k t 32VDC (High Ambient*) .R. : (1810 series) a A a
Reset Mechanism: Type III, Manual Reset.
Button: Red with 45 white ampere marking. º
Panel Mount: Secure breaker using 2 x #8-32 screws (included), which thread into built-in self-locking nuts.
Terminals (1800 series): Screw terminals includes #8-32 screws and lockwasher.
Terminals (1810 series): Threaded stud includes #10-32 nuts and lockwasher. Stud is 11.4mm long.
Pack Size: 1, 40
Vibration Rating: 10g per MIL-STD-202, Method 204, Test Condition A.
Options: Type 1, Automatic reset version available, contact sales for information.
Notes: Contact sales for dimensions, electrical & trip specifications for different styles of breaker.
*High Ambient style increases ultimate trip rating from 100% to 110% (min.) & 135% to 143% (max.) at 25 deg C.
Approvals: ABYC E11, UL 1077 & SAE J553 (I.R. rating)
SAE J1428 (weatherproof), SAE J553 (endurance)
UL 1077 (dielectric strength 1500VAC), UL 1500 (ignition proof)
MIL-STD-202 (vibration, shock, corrosion & humidity).

Spare Pack (SP):
Contains 1 of one pc rating.
