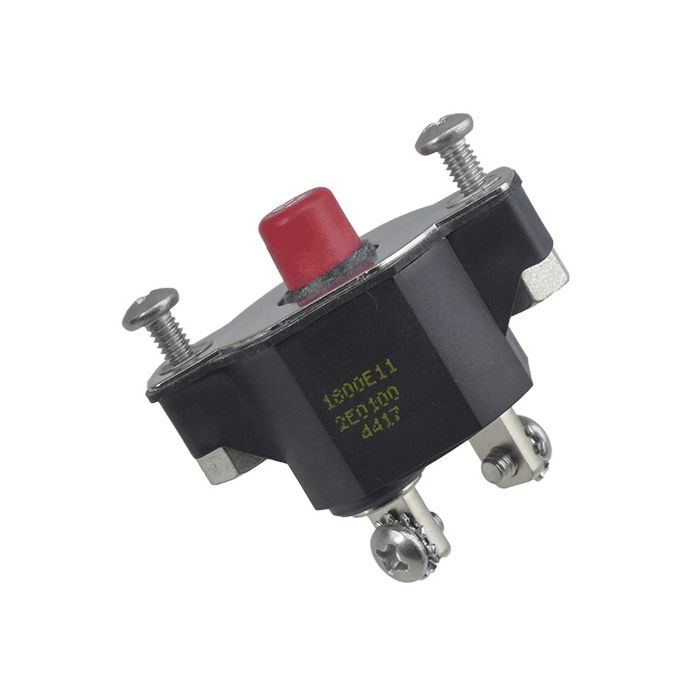

Mechanical Products 1800E112E0300 Series 18 Panel Mount 30A Circuit Breaker
Special Price
$71.15
Regular Price
$72.60
In stock
SKU
1800E112E0300
Mechanical Products 1800E112E0300 Series 18 Panel Mount 30A Circuit Breaker is available to buy in increments of 1
Mechanical Products 1800E112E0300 Series 18 Panel Mount 30A Circuit Breaker
Mechanical Products 1800E112E0300 Series 18 Panel Mount 30A Circuit Breaker
I.R. : (1800 series ) 3k at 120VAC / 32VDC (Standard Calibration) A
I 3kA t 120VAC, 5k t 32VDC (High Ambient*) .R. : (1810 series) a A a
Reset Mechanism: Type III, Manual Reset.
Button: Red with 45 white ampere marking. º
Panel Mount: Secure breaker using 2 x #8-32 screws (included), which thread into built-in self-locking nuts.
Terminals (1800 series): Screw terminals includes #8-32 screws and lockwasher.
Terminals (1810 series): Threaded stud includes #10-32 nuts and lockwasher. Stud is 11.4mm long.
Pack Size: 1, 40
Vibration Rating: 10g per MIL-STD-202, Method 204, Test Condition A.
Options: Type 1, Automatic reset version available, contact sales for information.
Notes: Contact sales for dimensions, electrical & trip specifications for different styles of breaker.
*High Ambient style increases ultimate trip rating from 100% to 110% (min.) & 135% to 143% (max.) at 25 deg C.
Approvals: ABYC E11, UL 1077 & SAE J553 (I.R. rating)
SAE J1428 (weatherproof), SAE J553 (endurance)
UL 1077 (dielectric strength 1500VAC), UL 1500 (ignition proof)
MIL-STD-202 (vibration, shock, corrosion & humidity).</p
Spare Pack (SP):
Contains 1 of one pc rating.
Mechanical Products Series 18 Circuit Breakers (1800) – CIRCUIT BREAKER 30A 120VAC/32VDC PANEL MOUNT MANUAL RESET, #8-32 SCREW TERMINAL
Features
- Designed for harsh environments; weatherproof and ignition proof
- Double break design for increased short-circuit interruption capability
- Trip-free push-to-reset actuator prevents forced closure during overload
- Materials resist UV and flammability
- Made in USA; suited to marine, heavy equipment, trucks, buses, and battery chargers
Specifications
| Part Number | 1800E112E0300 |
|---|---|
| Description | CIRCUIT BREAKER 30A 120VAC/32VDC PANEL MOUNT MANUAL RESET, #8-32 SCREW TERMINAL |
| Voltage | 125VAC / 32VDC |
| Ampere Rating | 5A, 10A, 12.5A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, 60A, 70A |
| I.R. (1800 Series) | 3kA at 120VAC / 32VDC (Standard Calibration) |
| I.R. (1810 Series) | 3kA at 120VAC, 5kA at 32VDC (High Ambient) |
| Trip Rating (High Ambient) | 110% (min.) and 143% (max.) at 25°C, versus 100% (min.) and 135% (max.) for standard |
| Reset Mechanism | Type III manual reset, red button with white ampere stamp at 45° |
| Reset Option | Type I automatic reset, 1801 and 1811 series (no button) |
| Mounting | Standard #10 eyelet hole with attached self-locking nut (includes 2 x #8-32 screws) |
| Mounting Option | #10 eyelet hole only, no locking nut (1800 and 1810 series) |
| Terminals (1800 Series) | Screw terminals, #8-32 screws and lock washer |
| Terminals (1810 Series) | Threaded stud, #10-32 nuts and lock washer; stud is 11.4mm long |
| Vibration Rating | 10g per MIL-STD-202, Method 204, Test Condition A |
| Housing | Ignition protected, UL 1500; UL 94 V-0 black thermoplastic |
| Approvals | ABYC E-11, SAE J553, SAE J1428, UL 1500, UL 1077, MIL-STD-202 |
| Manufacturer | Mechanical Products |
|---|---|
| Barcode | 9347729002726 |
