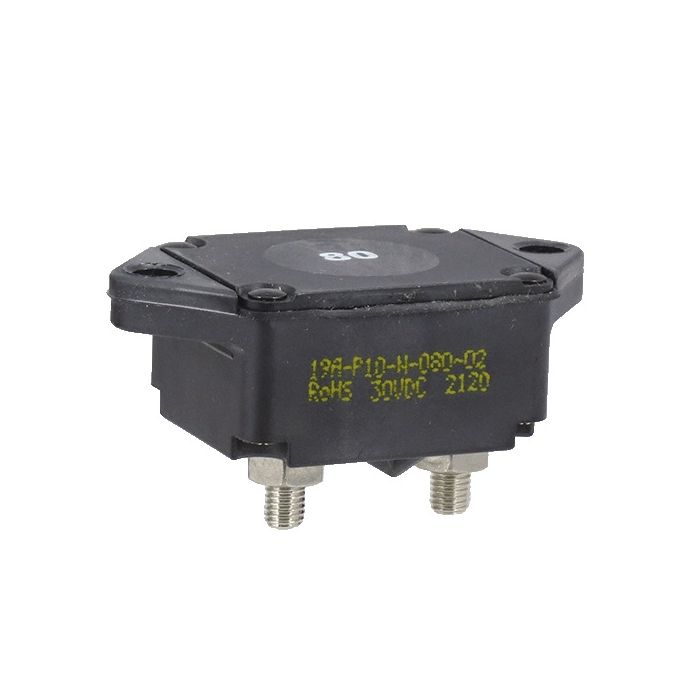

Mechanical Products 19A-P10-N-135 Series 19 Circuit Breaker 135A 30VDC

Special Price $107.00 Regular Price $108.90
In stock
SKU
19A-P10-N-135
Mechanical Products 19A-P10-N-135 Series 19 Circuit Breaker 135A 30VDC is available to buy in increments of 1

Mechanical Products 19A-P10-N-135 Series 19 Circuit Breaker 135A 30VDC

Mechanical Products 19A-P10-N-135 Series 19 Circuit Breaker 135A 30VDC

Series 19 circuit breakers offer superior Ingress Protection, rated to IP67 & IP69K making them suitable for harsh environments. Small circuit breaker able to handle high currents. They can be front or rear panel mounted. Made in USA.

Automatic reset circuit breakers will open the circuit on overload and close the circuit automatically when the operating current returns to normal. However, they are not designed for long term cycling. It is recommended they are installed downstream of a main fuse, manual reset circuit breaker or momentary switch.

  • I.R. : (25A - 150A) 2.5k at 14VDC, 1.5k at 28VDC A A
  • I.R. : (175A - 200A) 2.5k at 30VDC AReset Mechanism: Type ( ). III Manual Reset
  • Button (Standard): Red with white ampere marking.
  • Button Options: None, Red, Red LED or Clear LED
  • All buttons feature a white ampere marking.
  • Panel Mounting Options:
  • Standard Thru-hole, no nuts (19M-P10),
  • 2 x # 10-32 fitted nuts (19M-P11).
  • Wide mounting plate with 4 x #10-32 fixing screws (19M-P21).
  • Terminal Hardware: Includes 1/4” stainless steel sems nuts.
  • Threaded Stud: 1/4”-28 (12.5mm long)
  • Pack Size:1pc
  • Housing: UL 94-V0 rated black thermoplastic.
  • Operating Temp: -40 deg. C to 85 deg. C
  • Vibration Rating: 10g per MIL-STD-204, Test Condition A.
  • Breaker Options: Type I - Automatic Reset available. (19A-Pxx)
  • Red or clear illuminated button versions available (tripID).
  • Approvals: Endurance: SAE J1625
  • Interrupt Capacity: SAE J1625, ABYC E-11, UL1077
  • Ignition Protected: SAE J1171 Dielectric Strength: UL1077
  • Shock, Vibration, Corrosion, Humidity: Mil-STD-202
  • Dust and Waterproof Rated: IP67
  • High Temperature & Pressure Spray: IP69K
More Information
Manufacturer Mechanical Products
