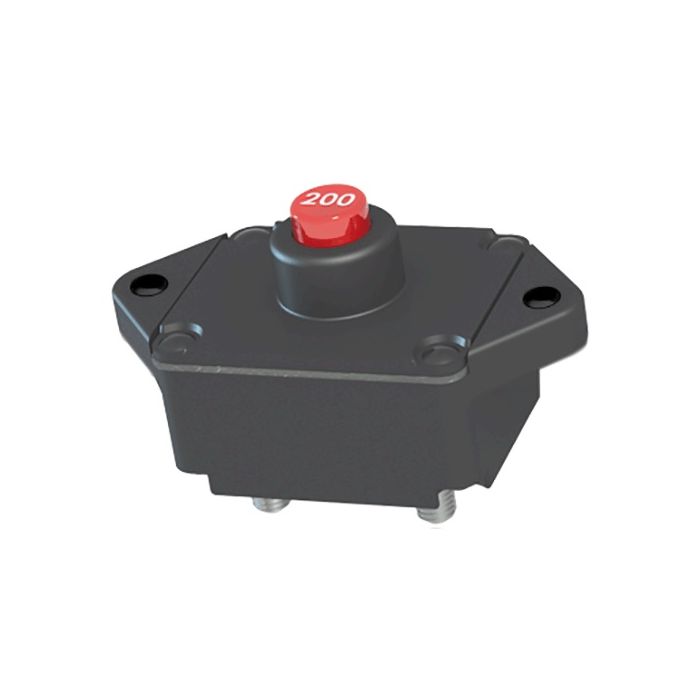

Mechanical Products 19M-P10-B-200 Panel Mount Circuit Breaker 1/4' Stud Manual 200A 30VDC

Special Price $152.00 Regular Price $154.00
In stock
SKU
19M-P10-B-200
Mechanical Products 19M-P10-B-200 Panel Mount Circuit Breaker 1/4' Stud Manual 200A 30VDC is available to buy in increments of 1

Mechanical Products 19M-P10-B-200 Panel Mount Circuit Breaker 1/4' Stud Manual 200A 30VDC

Mechanical Products 19M-P10-B-200 Panel Mount Circuit Breaker 1/4' Stud Manual 200A 30VDC

I.R. (25A - 150A): 2.5kA at 14VDC, 1.5kA at 28VDC
I.R. (175A - 200A): 2.5kA at 30VDC
Reset Mechanism: Type III ( Manual Reset).
Button (Standard): Red with white ampere marking.
Button Options: None, Red, Red LED or Clear LED. All buttons feature a white ampere marking.
Panel Mounting Options:
Standard Thru-hole, no nuts (19M-P10) or
2 x # 10-32 fitted nuts (19M-P11).
Terminal Hardware: Includes 1/4” stainless steel sems nuts.
Threaded Stud: 1/4”-28 (12.5mm long)
Pack Size:1 pc
Housing: UL 94-V0 rated black thermoplastic.
Operating Temp: -40 deg. C to 85 deg. C
Vibration Rating: 10g per MIL-STD-204, Test Condition A.
Options: Type I - Automatic Reset version available.
Red or clear illuminated button versions available (tripID). Wide mounting plate version available. Contact sales for information.
Notes: Contact sales for dimensions, electrical & trip specifications
for different styles of breaker.
Approvals:
Interrupt Capacity: SAE J1625, ABYC E-11, Ul1077
Ignition Protected: SAE J1171
Endurance: SAE J1625
Dielectric Strength: Ul1077
Shock, Vibration, Corrosion, Humidity: Mil-STD-202
Dust and Waterproof Rated: IP67
High Temperature & Pressure Spray: IP69K
