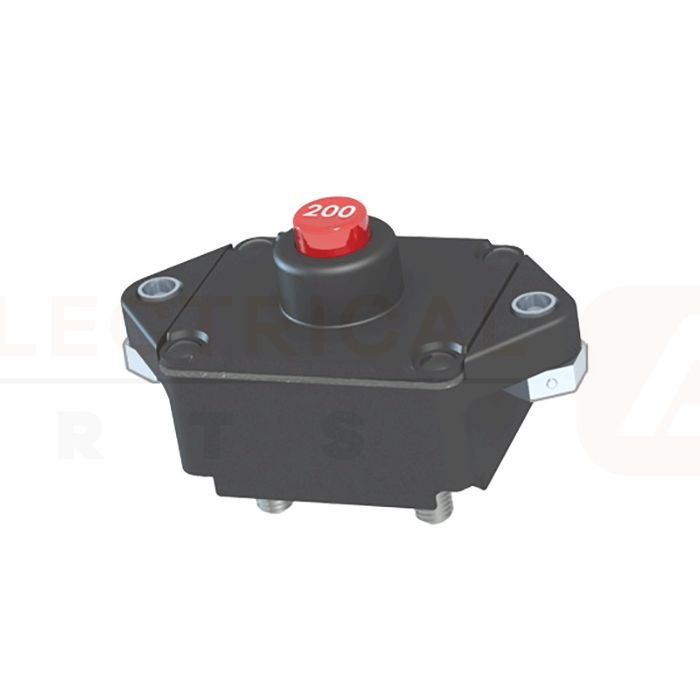

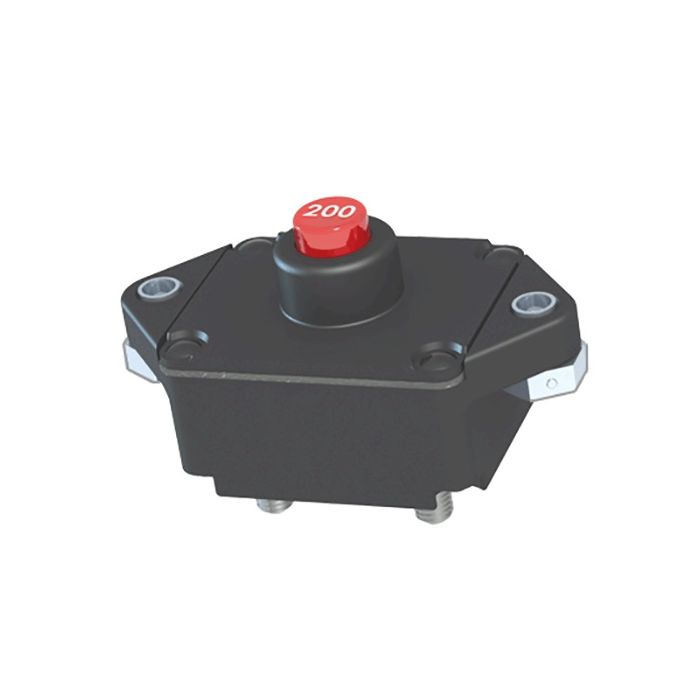

Mechanical Products 19M-P11-B-080 Series 19 Circuit Breaker 80A 30VDC

Special Price $107.00 Regular Price $108.90
In stock
SKU
19M-P11-B-080
Mechanical Products 19M-P11-B-080 Series 19 Circuit Breaker 80A 30VDC is available to buy in increments of 1

Mechanical Products 19M-P11-B-080 Series 19 Circuit Breaker 80A 30VDC

Mechanical Products 19M-P11-B-080 Series 19 Circuit Breaker 80A 30VDC

Series 19 circuit breakers offer superior Ingress Protection, rated to IP67 & IP69K making them suitable for harsh environments. Small circuit breaker able to handle high currents. Perfect for mounting behind a panel with pre-fitted nuts. Made in USA.

Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.

  • I.R. : (25A - 150A) 2.5k at 14VDC, 1.5k at 28VDC A A
  • I.R. : (175A - 200A) 2.5k at 30VDC AReset Mechanism: Type ( ). III Manual Reset
  • Button (Standard): Red with white ampere marking.
  • Button Options: None, Red, Red LED or Clear LED.
  • All buttons feature a white ampere marking.

Panel Mounting Options:

  • Standard Thru-hole, no nuts (19M-P10), 2 x # 10-32 fitted nuts (19M-P11).
  • Wide mounting plate with 4 x #10-32 fixing screws (19M-P21).
  • Terminal Hardware: Includes 1/4” stainless steel sems nuts.
  • Threaded Stud: 1/4”-28 (12.5mm long)
  • Pack Size:1pc
  • Housing: UL 94-V0 rated black thermoplastic.
  • Operating Temp: -40 deg. C to 85 deg. C
  • Vibration Rating: 10g per MIL-STD-204, Test Condition A.
  • Breaker Options: Type I - Automatic Reset available. (19A-Pxx)
  • Red or clear illuminated button versions available (tripID).
  • Approvals: Endurance: SAE J1625
  • Interrupt Capacity: SAE J1625, ABYC E-11, UL1077
  • Ignition Protected: SAE J1171 Dielectric Strength: UL1077
  • Shock, Vibration, Corrosion, Humidity: Mil-STD-202
  • Dust and Waterproof Rated: IP67High Temperature & Pressure Spray: IP69K
