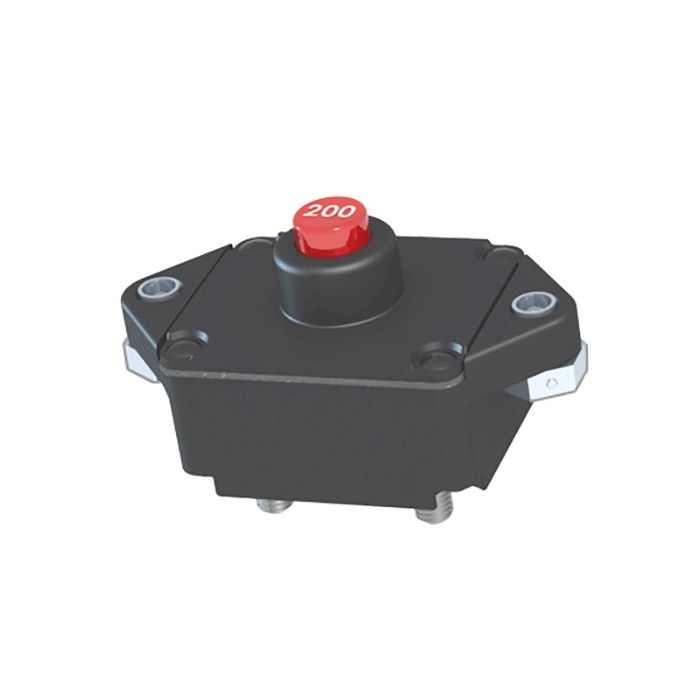

Mechanical Products 19M-P11-B-090 Series 19 Circuit Breaker 90A 30VDC

Series 19 circuit breakers offer superior Ingress Protection, rated to IP67 & IP69K making them suitable for harsh environments. Small circuit breaker able to handle high currents. Perfect for mounting behind a panel with pre-fitted nuts. Made in USA.

Manual reset circuit breakers will open the circuit on overload and will remain open until the user presses the reset button on the circuit breaker.

• I.R. : (25A - 150A) 2.5k at 14VDC, 1.5k at 28VDC A A
• I.R. : (175A - 200A) 2.5k at 30VDC AReset Mechanism: Type ( ). III Manual Reset
• Button (Standard): Red with white ampere marking.
• Button Options: None, Red, Red LED or Clear LED.
• All buttons feature a white ampere marking.

Panel Mounting Options:

• Standard Thru-hole, no nuts (19M-P10), 2 x # 10-32 fitted nuts (19M-P11).
• Wide mounting plate with 4 x #10-32 fixing screws (19M-P21).
• Terminal Hardware: Includes 1/4” stainless steel sems nuts.
• Threaded Stud: 1/4”-28 (12.5mm long)
• Pack Size:1pc
• Housing: UL 94-V0 rated black thermoplastic.
• Operating Temp: -40 deg. C to 85 deg. C
• Vibration Rating: 10g per MIL-STD-204, Test Condition A.
• Breaker Options: Type I - Automatic Reset available. (19A-Pxx)
• Red or clear illuminated button versions available (tripID).
• Approvals: Endurance: SAE J1625
• Interrupt Capacity: SAE J1625, ABYC E-11, UL1077
• Ignition Protected: SAE J1171 Dielectric Strength: UL1077
• Shock, Vibration, Corrosion, Humidity: Mil-STD-202
• Dust and Waterproof Rated: IP67High Temperature & Pressure Spray: IP69K
