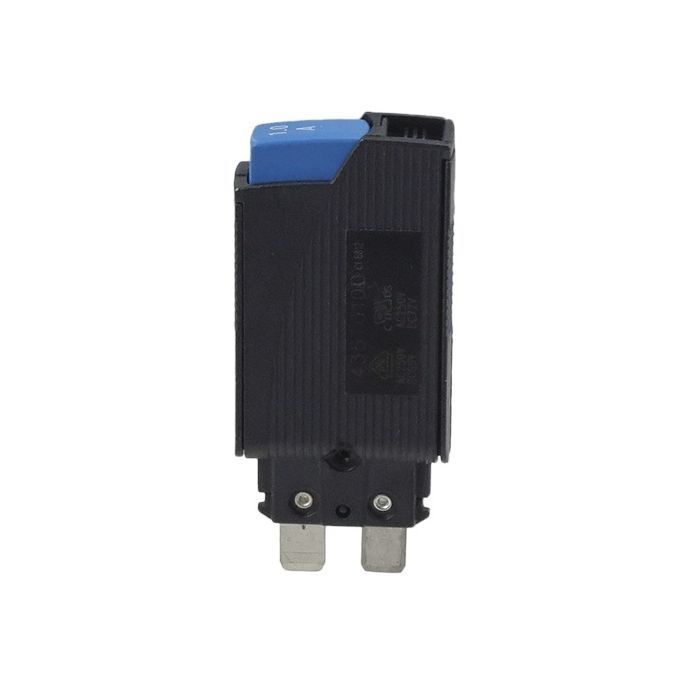

Morsettitalia 435T0050 Auto Reset Blade Type Circuit Breaker 500mA
Special Price
$29.65
Regular Price
$30.25
In stock
SKU
435T0050
Morsettitalia 435T0050 Auto Reset Blade Type Circuit Breaker 500mA is available to buy in increments of 1
Morsettitalia 435T0050 Auto Reset Blade Type Circuit Breaker 500mA
Morsettitalia 435T0050 Auto Reset Blade Type Circuit Breaker 500mA
Miniaturised single pole thermal circuit breaker with switching function (push-push actuation).
Reliable snap-acting and trip-free mechanism. Approved to CBE standard EN/IEC 60934.
Protection of loads in power distribution systems
Features:
- Low amperages.
- Suitable for both AC and DC Voltage.
- Manual push on push off button.
- Labeling feature.
I.R.: 2000A @ rated voltage (UL)
Voltage: 250VAC / 65VDC (VDE)
250VAC / 72VDC (UL & CSA)
Holders: DIN rail mount fused terminal b (Page 131) locks
Reset Mechanism: Type III, Manual Reset / Manual Trip
Typical life: 6,000 operations at 1 x In (low-inductance)
3,000 operations at 1 x In (inductive)
500 operations at 2 x In (inductive)
Operating Temp: - 0°C to °C 2 60
Pack Size: Stock lines 1pc,
Morsettitalia 435T Blade Circuit Breakers – AUTO BLADE CIRCUIT BREAKER 500MA 250VAC/72VDC TYPE III / PUSH TO TRIP
Features
- Low profile design, ignition protected (28V series)
- Colour-coded bodies match amperage ratings (28V series)
- Manual reset button with protective walls; matches auto fuse footprint (28V series)
- Suitable for both AC and DC voltage; manual push-on/push-off button (72V series)
Specifications
| Part Number | 435T0050 |
|---|---|
| Description | AUTO BLADE CIRCUIT BREAKER 500MA 250VAC/72VDC TYPE III / PUSH TO TRIP |
| Voltage | 250VAC / 72VDC (UL & CSA), 250VAC / 65VDC (VDE) |
| Ampere Range | 250mA to 10A |
| Interrupt Rating | 2000A @ rated voltage (UL) |
| Reset Mechanism | Type III, Manual Reset / Manual Trip |
| Typical Life | 6,000 operations at 1 x In (low-inductance); 3,000 operations at 1 x In (inductive); 500 operations at 2 x In (inductive) |
| Manufacturer | Morsettitalia |
|---|
