Pre Terminated Cables to suit Bussmann 15303 Fuse Panels
Special Price
$28.60
Regular Price
$29.95
In stock
SKU
CAB2.0X300TS1
Pre Terminated Cables to suit Bussmann 15303 Fuse Panels is available to buy in increments of 1

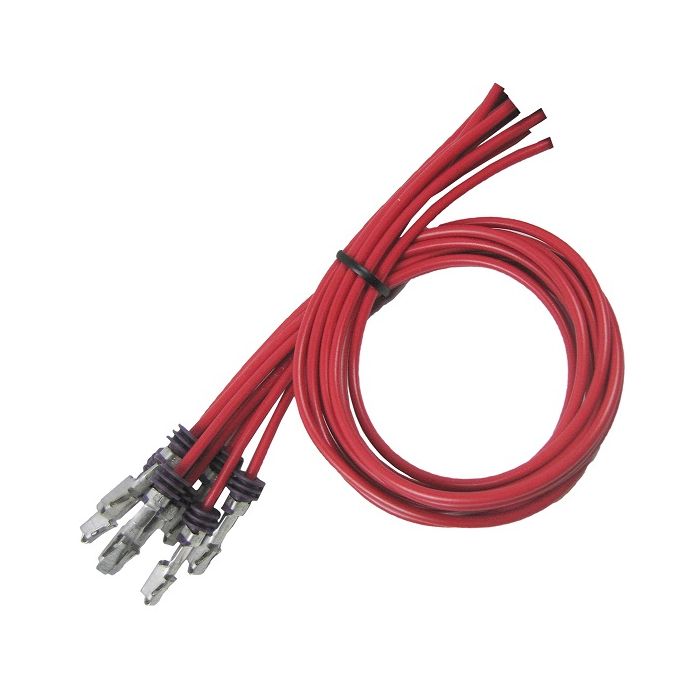

Pre Terminated Cables to suit Bussmann Fuse Panels
Prolec Pre-Terminated Red Cable MP280FS Tangless – CABLE 2.0X300MM RED CABLE, 1 X 12129409 TERMINAL & SEAL
Features
- Output cables are terminated at one end and pre-stripped with a slug on the other
- Jumper cables are terminated at both ends
- Compatible with the #15303 Series Mini fuse and ISO 280 Relay Rear Terminal Panel (tangless version)
- Compatible with Prolec PDM panels and 1540x Series units (tanged version)
- Molex heat shrink butt splices are sealed against water, salt, and corrosive compounds after heat is applied
Specifications
| Part Number | CAB2.0X300TS1 |
|---|---|
| Description | CABLE 2.0X300MM RED CABLE, 1 X 12129409 TERMINAL & SEAL |
| Output Cable | Terminal and cable seal crimped to one end, pre-strip with slug on the other end |
| Jumper Cable | Terminal and cable seal crimped to both ends |
| Terminal (Tangless) | Delphi Packard Metri-Pack 280 series female sealed / tangless |
| Terminal (Tanged) | Delphi Packard Metri-Pack 280 series female sealed / tanged |
| Terminal Material | Tin Brass / Tin plated |
| Cable Seal | Silicone |
| Wire Size (mm²) | 1.84 |
| Wire Length (mm) | 305 (output cable), 90 (jumper cable) |
| Colour | Red, Blue |
| Voltage (Molex Butt Splice) | Maximum 600V |
| Barrel Type (Molex Butt Splice) | Closed |
| Plating, Mating & Termination (Molex Butt Splice) | Tin |
| Operating Temperature (Molex Butt Splice) | -55°C to +125°C |
| Wire Insulation Diameter (Molex Butt Splice) | 5.97mm max |
| Insulation (Molex Butt Splice) | NiAc™ |
| Material Metal (Molex Butt Splice) | Copper |
| Manufacturer | Bussmann |
|---|
